SALAD-Pan: Sensor-Agnostic Latent Adaptive Diffusion for Pan-Sharpening

Junjie Li · Congyang Ou · Haokui Zhang · Guoting Wei · Shengqin Jiang · Ying Li · Chunhua Shen

Given a PAN–LRMS image pair, SALAD-Pan fine-tunes a pre-trained diffusion model to generate a HRMS image.

News

• [02/01/2026] Code will be released soon!

Contents

• Setup
• Usage
• Repository Layout
• Results
• Citation
• Shoutouts

Setup

Requirements

git clone https://github.com/JJLibra/SALAD-Pan.git
cd SALAD-Pan

conda create -n saladpan python=3.10 -y
conda activate saladpan

# This project depends on a modified local version of `diffusers` under `./diffusers`.
cd diffusers
pip install -e .

cd ..
pip install -r requirements.txt

Initialize an 🤗 Accelerate environment with:

accelerate config

Or use a default Accelerate configuration without answering environment questions:

accelerate config default

Weights

We provide two-stage checkpoints:

• Stage I (Band-VAE): checkpoints/vae.safetensors Download: Hugging Face

• Stage II (Latent Diffusion): runs on top of Stable Diffusion in the Band-VAE latent space.

  • Stable Diffusion base: download from Hugging Face (e.g., Stable Diffusion v1-5)
  • Adapters: checkpoints/adapters.pth Download: Hugging Face

Repository Layout

• configs/: training and inference YAML configurations.
• core/: project model components and diffusion pipeline implementation.
• utils/: data prep and metric utilities.
• scripts/: convenience shell launchers.
• data/: dataset root and expected structure notes.
• checkpoints/: local checkpoint storage.
• base/stable-diffusion-v1-5/: local SD v1.5 base model files.

Usage

Training

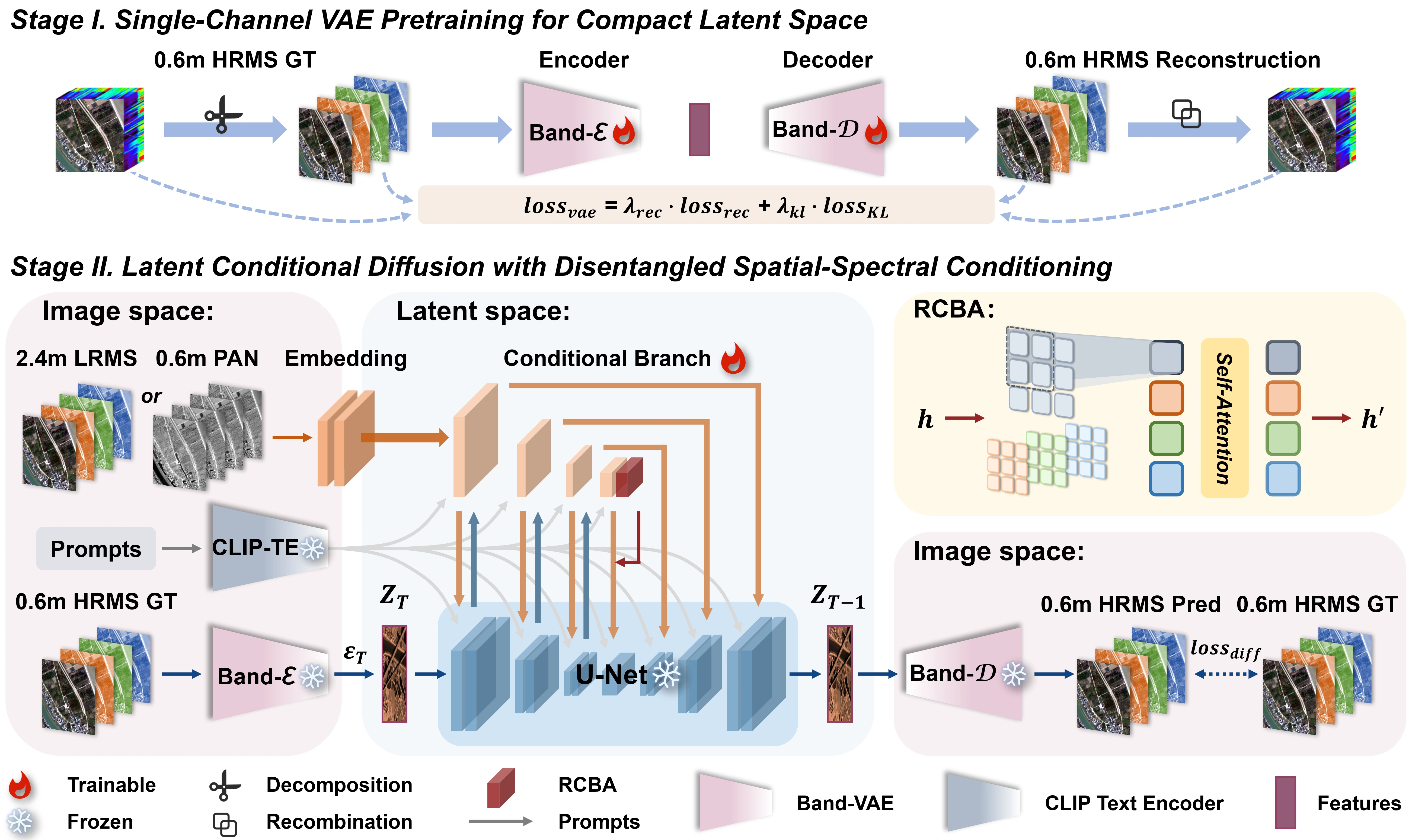

We train the model in two stages.

• Stage I (VAE pretraining)

accelerate launch --config_file configs/accelerate.yaml train_vae.py --config configs/train_vae.yaml

• Stage II (Diffusion + Adapter training)

accelerate launch --config_file configs/accelerate.yaml train_diffusion.py --config configs/train_diffusion.yaml

Note: Training usually takes 40k–50k steps, which is about 1–2 days on eight RTX 4090 GPUs in fp16. Reduce batch_size if your GPU memory is limited.

Inference

Once training is finished, run inference:

import torch
from diffusers import AutoencoderKL, DDPMScheduler, UNet2DConditionModel, UniPCMultistepScheduler
from transformers import AutoTokenizer, CLIPTextModel
from core.components.salad_pan import DualBranchXSAdapter, UNetDualBranchXSModel
from core.pipelines.salad_pan import StableDiffusionDualBranchXSPipeline

device = "cuda"
dtype = torch.float16

base_model = "base/stable-diffusion-v1-5"
vae_path = "output/vae_c1_gf2_qb_wv3"
adapter_weights = "output/diffusion_model/dual_branch_xs_adapter.pt"

tokenizer = AutoTokenizer.from_pretrained(base_model, subfolder="tokenizer", use_fast=False, local_files_only=True)
text_encoder = CLIPTextModel.from_pretrained(base_model, subfolder="text_encoder", local_files_only=True)
vae = AutoencoderKL.from_pretrained(vae_path, local_files_only=True)
base_unet = UNet2DConditionModel.from_pretrained(base_model, subfolder="unet", local_files_only=True)

adapter = DualBranchXSAdapter.from_unet(base_unet, size_ratio=0.25, conditioning_channels=5, conditioning_channel_order="rgb")
unet = UNetDualBranchXSModel.from_unet(base_unet, adapter=adapter)
unet.load_state_dict(torch.load(adapter_weights, map_location="cpu"), strict=False)

scheduler = UniPCMultistepScheduler.from_config(
    DDPMScheduler.from_pretrained(base_model, subfolder="scheduler", local_files_only=True).config
)

pipe = StableDiffusionDualBranchXSPipeline(
    vae=vae,
    text_encoder=text_encoder,
    tokenizer=tokenizer,
    unet=unet,
    adapter=None,
    scheduler=scheduler,
    safety_checker=None,
    feature_extractor=None,
    requires_safety_checker=False,
).to(device)

prompt = ["GaoFen-2 satellite Band Red 630-690nm"]
conditioning = torch.randn(1, 5, 128, 128, device=device, dtype=dtype)  # replace with real [LR*4, PAN]

image = pipe(
    prompt=prompt,
    image=conditioning,
    num_inference_steps=20,
    guidance_scale=1.0,
    conditioning_scale_spa=1.0,
    conditioning_scale_spe=1.0,
    output_type="pil",
).images[0]

image.save("salad_pan_demo.png")

Installing xformers is highly recommended for better GPU efficiency and speed. To enable it, set enable_xformers_memory_efficient_attention=True.

Results

🚨 We strongly recommend visiting our project website for a better reading experience.

Quantitative Results

Table 1. Quantitative results on the WorldView-3 (WV3) dataset. Best results are in bold.

Models	Pub/Year	Q8 ↑	SAM ↓	ERGAS ↓	SCC ↑	Dλ ↓	Ds ↓	HQNR ↑
PaNNet	ICCV’17	0.891±0.045	3.613±0.787	2.664±0.347	0.943±0.018	0.017±0.008	0.047±0.014	0.937±0.015
FusionNet	TGRS’20	0.904±0.092	3.324±0.411	2.465±0.603	0.958±0.023	0.024±0.011	0.036±0.016	0.940±0.019
LAGConv	AAAI’22	0.910±0.114	3.104±1.119	2.300±0.911	0.980±0.043	0.036±0.009	0.032±0.016	0.934±0.011
BiMPAN	ACMM’23	0.915±0.087	2.984±0.601	2.257±0.552	0.984±0.005	0.017±0.019	0.035±0.015	0.949±0.026
ARConv	CVPR’25	0.916±0.083	2.858±0.590	2.117±0.528	0.989±0.014	0.014±0.006	0.030±0.007	0.958±0.010
WFANET	AAAI’25	0.917±0.088	2.855±0.618	2.095±0.422	0.989±0.011	0.012±0.007	0.031±0.009	0.957±0.010
PanDiff	TGRS’23	0.898±0.090	3.297±0.235	2.467±0.166	0.980±0.019	0.027±0.108	0.054±0.047	0.920±0.077
SSDiff	NeurIPS’24	0.915±0.086	2.843±0.529	2.106±0.416	0.986±0.004	0.013±0.005	0.031±0.003	0.956±0.016
SGDiff	CVPR’25	0.921±0.082	2.771±0.511	2.044±0.449	0.987±0.009	0.012±0.005	0.027±0.003	0.960±0.006
SALAD‑Pan	Ours	0.924±0.064	2.689±0.135	1.839±0.211	0.989±0.007	0.010±0.008	0.021±0.004	0.965±0.007

Table 2. Quantitative results on the QuickBird (QB) dataset. Best results are in bold.

Models	Pub/Year	Q4 ↑	SAM ↓	ERGAS ↓	SCC ↑	Dλ ↓	Ds ↓	HQNR ↑
PaNNet	ICCV’17	0.885±0.118	5.791±0.995	5.863±0.413	0.948±0.021	0.059±0.017	0.061±0.010	0.883±0.025
FusionNet	TGRS’20	0.925±0.087	4.923±0.812	4.159±0.351	0.956±0.018	0.059±0.019	0.052±0.009	0.892±0.022
LAGConv	AAAI’22	0.916±0.130	4.370±0.720	3.740±0.290	0.959±0.047	0.085±0.024	0.068±0.014	0.853±0.018
BiMPAN	ACMM’23	0.931±0.091	4.586±0.821	3.840±0.319	0.980±0.008	0.026±0.020	0.040±0.013	0.935±0.030
ARConv	CVPR’25	0.936±0.088	4.453±0.499	3.649±0.401	0.987±0.009	0.019±0.014	0.034±0.017	0.948±0.042
WFANET	AAAI’25	0.935±0.092	4.490±0.582	3.604±0.337	0.986±0.008	0.019±0.016	0.033±0.019	0.948±0.037
PanDiff	TGRS’23	0.934±0.095	4.575±0.255	3.742±0.353	0.980±0.007	0.058±0.015	0.064±0.020	0.881±0.075
SSDiff	NeurIPS’24	0.934±0.094	4.464±0.747	3.632±0.275	0.982±0.008	0.031±0.011	0.036±0.013	0.934±0.021
SGDiff	CVPR’25	0.938±0.087	4.353±0.741	3.578±0.290	0.983±0.007	0.023±0.013	0.043±0.012	0.934±0.011
SALAD‑Pan	Ours	0.939±0.088	4.198±0.526	3.251±0.288	0.984±0.009	0.017±0.011	0.026±0.009	0.957±0.010

Table 3. Quantitative results on the GaoFen-2 (GF2) dataset. Best results are in bold.

Models	Pub/Year	Q4 ↑	SAM ↓	ERGAS ↓	SCC ↑	Dλ ↓	Ds ↓	HQNR ↑
PaNNet	ICCV’17	0.967±0.013	0.997±0.022	0.919±0.039	0.973±0.011	0.017±0.012	0.047±0.012	0.937±0.023
FusionNet	TGRS’20	0.964±0.014	0.974±0.035	0.988±0.072	0.971±0.012	0.040±0.013	0.101±0.014	0.863±0.018
LAGConv	AAAI’22	0.970±0.011	1.080±0.023	0.910±0.045	0.977±0.006	0.033±0.013	0.079±0.013	0.891±0.021
BiMPAN	ACMM’23	0.965±0.020	0.902±0.066	0.881±0.058	0.972±0.018	0.032±0.015	0.051±0.014	0.918±0.019
ARConv	CVPR’25	0.982±0.013	0.710±0.149	0.645±0.127	0.994±0.005	0.007±0.005	0.029±0.019	0.963±0.018
WFANET	AAAI’25	0.981±0.007	0.751±0.082	0.657±0.074	0.994±0.002	0.003±0.003	0.032±0.021	0.964±0.020
PanDiff	TGRS’23	0.979±0.011	0.888±0.037	0.746±0.031	0.988±0.003	0.027±0.011	0.073±0.013	0.903±0.025
SSDiff	NeurIPS’24	0.983±0.007	0.670±0.124	0.604±0.108	0.991±0.006	0.016±0.009	0.027±0.027	0.957±0.010
SGDiff	CVPR’25	0.980±0.011	0.708±0.119	0.668±0.094	0.989±0.005	0.020±0.013	0.024±0.022	0.959±0.011
SALAD‑Pan	Ours	0.982±0.010	0.667±0.051	0.592±0.088	0.991±0.003	0.005±0.002	0.022±0.014	0.973±0.010

Qualitative Comparison

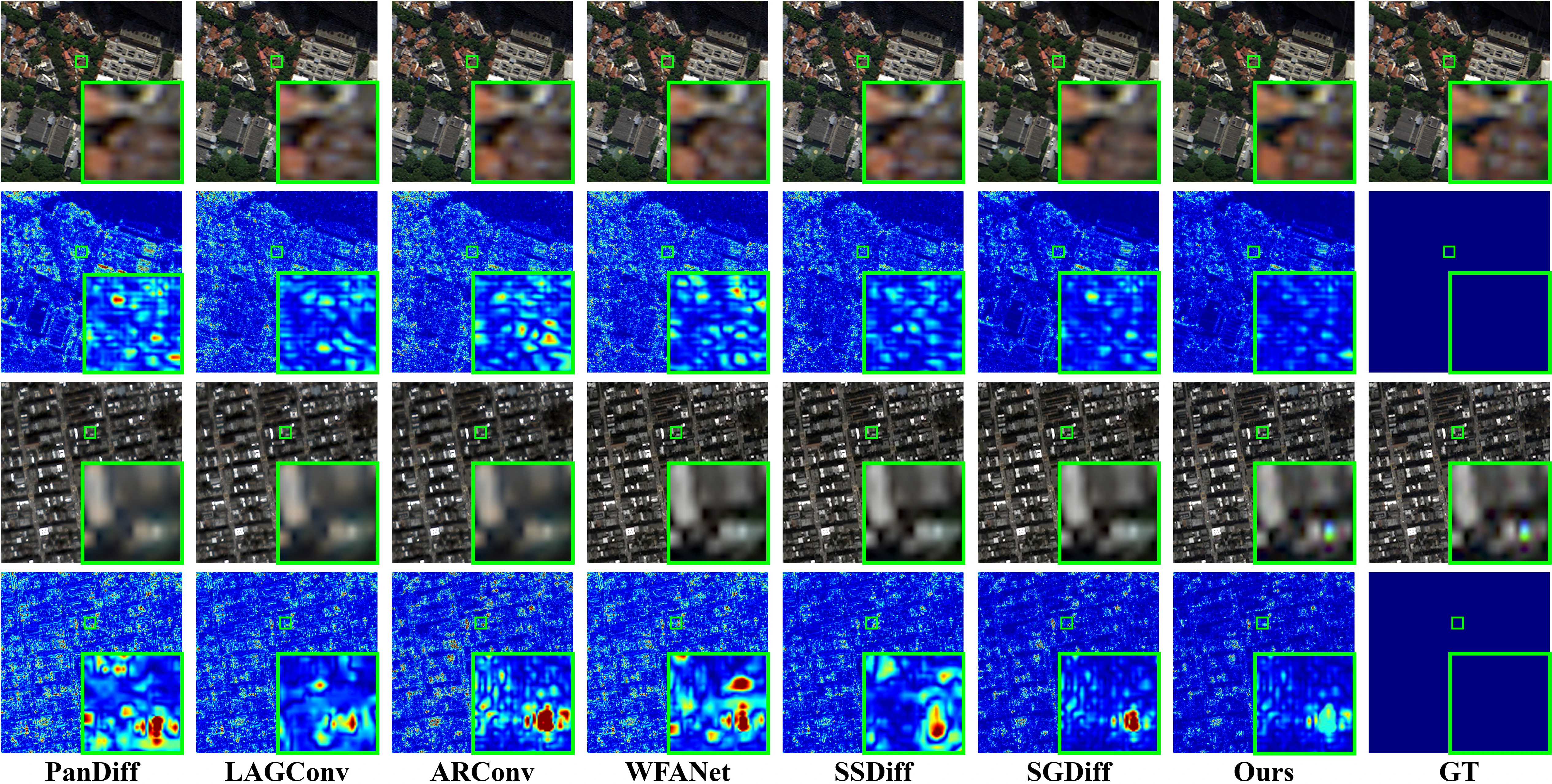

Visual comparison on the WorldView-3 (WV3) and QuickBird (QB) datasets at reduced resolution.

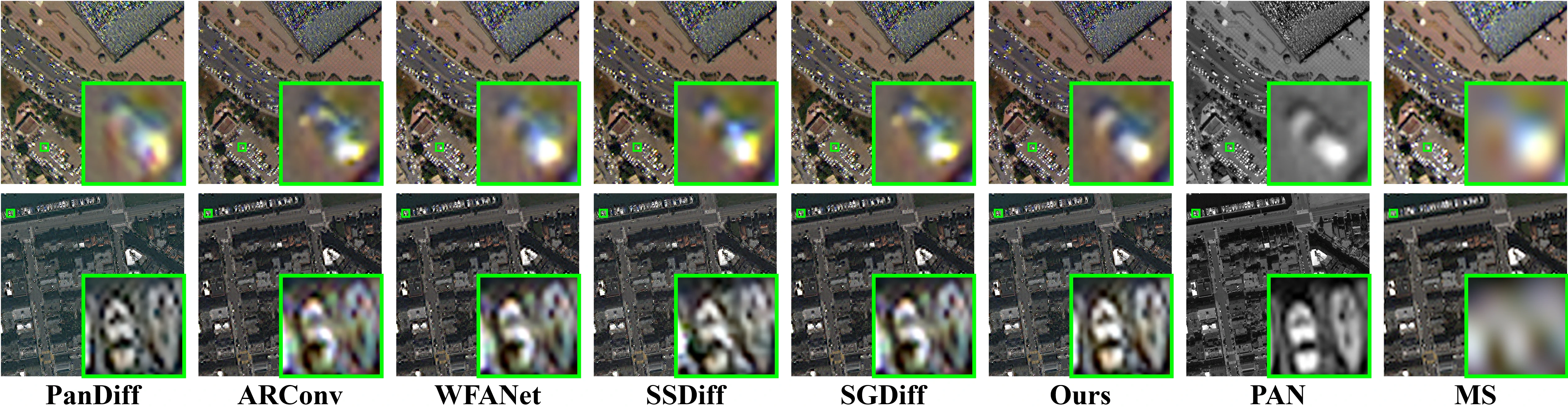

Visual comparison on the WorldView-3 (WV3) and QuickBird (QB) datasets at full resolution.

Efficiency Comparison (RR, QB)

Diffusion-based Methods	SAM ↓	ERGAS ↓	NFE	Latency (s) ↓
PanDiff	4.575±0.255	3.742±0.353	1000	356.63±1.98
SSDiff	4.464±0.747	3.632±0.275	10	10.10±0.21
SGDiff	4.353±0.741	3.578±0.290	50	6.64±0.09
SALAD-Pan	4.198±0.526	3.251±0.288	20	3.36±0.07

Latency is reported as mean ± std over 10 runs (warmup = 3), with batch size = 1, evaluated on the QB dataset under the reduced-resolution (RR) protocol on an RTX 4090 GPU.

Citation

If you find our work useful, please cite:

@article{li2026saladpan,
  title={SALAD-Pan: Sensor-Agnostic Latent Adaptive Diffusion for Pan-Sharpening},
  author={Junjie Li and Congyang Ou and Haokui Zhang and Guoting Wei and Shengqin Jiang and Ying Li and Chunhua Shen},
  journal={arXiv preprint arXiv:2602.04473},
  year={2026}
}

Shoutouts

• Built with 🤗 Diffusers. Thanks for open-sourcing!
• The interactive demo is powered by 🤗 Gradio. Thanks for open-sourcing!
