PayPruf — Flare Network Payment Verification

PayPruf is a decentralized solution for generating and verifying audit-grade payment proofs on the Flare Network. It creates immutable, shareable payment confirmations to reduce disputes and ambiguity in crypto transactions.

---

📋 Table of Contents

• Features
• Architecture
• Getting Started
• Installation
• Usage
• API Reference
• Project Structure
• Configuration
• Contributing
• License

---

✨ Features

• 🔗 Shareable Proof Links Generate public, read-only URLs for Flare payments.

• 🔍 On-Chain Verification Payments are verifiable directly on the Flare blockchain.

• 📄 Human-Readable Receipts Clear transaction details with timestamps and references.

• 📦 Downloadable Proof Bundles ISO-aligned records available in PDF / JSON formats.

• ✅ Counterparty Acknowledgement (Optional) Recipients can acknowledge payment receipt.

• 🛡️ Immutable Anchoring Proof hashes are anchored on Flare for auditability.

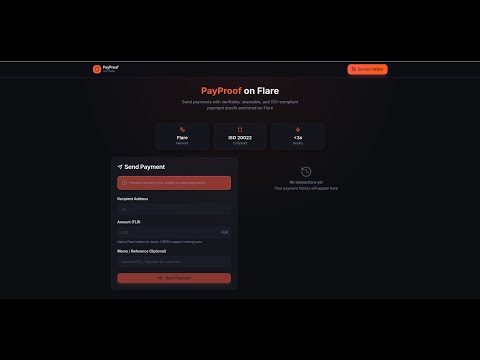

🎥 Video Demonstration

Watch the application in action:

Click the image above to watch the full demo on YouTube

---

🏗 Architecture

System Flow

flowchart TD
    A[User Initiates Payment]
    --> B[Flare Network Transaction]
    --> C[Transaction Confirmed]
    --> D[Generate ProofRails Record]
    --> E[Anchor Proof Hash on Flare]
    --> F[Generate Shareable Proof Link]
    --> G[Recipient Views Proof]
    --> H[Optional: Acknowledge Receipt]

Loading

---

🧰 Tech Stack

Frontend

• Framework: React 18 + TypeScript
• Build Tool: Vite
• Styling: Tailwind CSS, shadcn/ui
• State Management: React Query
• Forms & Validation: React Hook Form + Zod
• Web3: Wagmi + Viem
• UI Components: Radix UI
• Charts: Recharts

Backend

• Runtime: Node.js
• Framework: Express.js
• Database: PostgreSQL + Prisma ORM
• Blockchain: Viem, Ethers.js
• Auth: JWT
• Logging: Winston
• Validation: express-validator

---

🚀 Getting Started

Prerequisites

• Node.js 18+
• npm 9+
• PostgreSQL 14+
• Flare RPC endpoint
• MetaMask or compatible Web3 wallet

---

📦 Installation

Clone the Repository

git clone https://github.com/Moses-main/paypruf.git
cd paypruf

Install Frontend Dependencies

npm install

Set Up Backend

cd server
npm install
cp .env.example .env

Configure environment variables, then run:

npx prisma generate
npx prisma migrate dev --name init

Start Development Servers

# Frontend
npm run dev

# Backend
cd server
npm run dev

---

🛠 Project Structure

paypruf/
├── src/                    # Frontend
│   ├── components/         # UI components
│   ├── hooks/              # Custom hooks
│   ├── lib/                # Utilities
│   ├── pages/              # App pages
│   └── types/              # Type definitions
│
└── server/                 # Backend
    ├── prisma/             # Database schema
    ├── src/
    │   ├── controllers/    # Request handlers
    │   ├── middleware/     # Express middleware
    │   ├── routes/         # API routes
    │   └── services/       # Business logic
    └── .env                # Environment config

---

🔧 Configuration

Frontend (.env)

VITE_FLARE_NETWORK_RPC=https://flare-api.flare.network/ext/bc/C/rpc
VITE_WALLET_CONNECT_PROJECT_ID=your_walletconnect_id
VITE_API_URL=http://localhost:3001

Backend (.env)

DATABASE_URL="postgresql://user:password@localhost:5432/paypruf"
FLARE_NETWORK_RPC=https://flare-api.flare.network/ext/bc/C/rpc
JWT_SECRET=your_jwt_secret
PORT=3001

---

📚 API Reference

Generate Payment Proof

POST /api/proof/generate
Content-Type: application/json

{
  "txHash": "0x...",
  "sender": "0x...",
  "recipient": "0x...",
  "amount": "1.5",
  "token": "FLR",
  "memo": "Invoice #123"
}

---

Verify Payment Proof

GET /api/proof/verify/:proofId

Returns a public, read-only payment proof with Flare verification status.

---

🤝 Contributing

1. Fork the repository

2. Create a feature branch

   git checkout -b feature/AmazingFeature

3. Commit your changes

   git commit -m "Add AmazingFeature"

4. Push to the branch

   git push origin feature/AmazingFeature

5. Open a Pull Request

---

📄 License

Distributed under the MIT License. See LICENSE for more information.

---

🙏 Acknowledgments

• Flare Network — blockchain infrastructure
• ProofRails — ISO-aligned payment records
• Open-source contributors and the Web3 community
