The script is intended for parsing of resulting files (all_tables_sizes)

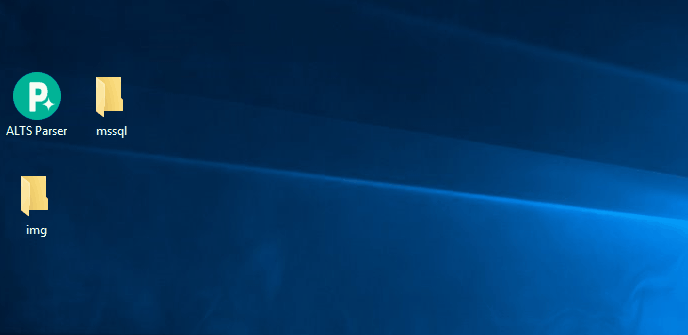

Demo

Fast start

How to launch application

1. load the project, put all the files in a single directory;
2. install Python 3.13 or higher (if absent);
3. open the administration console (CMD), enter the commands:

pip install -r requirements.txt

cd [The path to the catalog where Source.zip files]

Console version:

Python main.py

User interface version:

Python gui.py

The data is presented as follows:

Click to open

• DB Type

• Updates

• DB Name

• Creator

• Creation date

• Current Volume

• Maximal Volume

• [Table] Tables in size (MB)

• [Table] Events stored in the database

• Events count

Pars the resulting files from the following DBMS:

• Microsoft SQL (MSSQL)
• PostgreSQL
• MariaDB
• MySQL

How to get result.xml files

The resulting files are unloading information from the Kaspersky Security Center database

To obtain files you need::

• Download .sql-files all_tables_sizes for creating request to DBMS
• Through the utility klsql2

An example of a request for a KSC database (MSSQL) via KLSQL2:

cd "C:\Program Files (x86)\Kaspersky Lab\Kaspersky Security Center"

.\klsql2 -i all_tables_sizes_mssqlsrv.sql -o result.xml
