Tether is a project designed to extract groups of CPU instructions from a compiled binary (x86_64 PE file) and execute them exclusively on a remote server. The concept of offloading sensitive or computationally intensive code to a remote system is not new. Various approaches have been explored over the years, some of which share conceptual similarities with Tether:
- Remote Procedure Calls (RPC)
- RPC is a long-established technique that allows a program to execute code on another machine as if it were local. In this model, function calls made on the client are serialized, sent over the network, executed on the server, and the results returned back.
- Remote Graphics Processing
- Remote graphics systems such as early thin clients, X11 forwarding, or modern GPU virtualization which sends rendering commands or framebuffers over the network so that the client can display output without owning the full graphics stack.
Tether originated as an internal side project at Back Engineering Labs, aiming to explore the possibilities of securing software by relocating sensitive computational routines to a remote server after the software was already compiled. This post-compilation approach means that protection can be added without modifying source code or development workflows.
The name "Tether" was decided upon as it reminded us of old IPhone jailbreak exploits that required you to re-run them after a reboot
For clarity, the Tether server code is completely free and open source, you must host your own Tether servers. CodeDefender is used to extract instructions from the program and statically link the embedded Tether client. The embedded client code is statically linked into a program post-compilation by CodeDefender. You are free to fork and manipulate server code as you see fit, however the client code is more closely integrated into our CodeDefender SaaS platform. If you wish to alter the embedded client code, please contact us at contact@back.engineering.
-
Tether uses ENet, a lightweight UDP networking library. The setup and teardown of UDP connections is much faster than that of a TCP connection. ENet offers reliable packet delivery, including proper ordering. It also offers multiple channels per-connection.
-
Tether uses monocypher, a very tiny, but powerful crypto library. When a connection is established, there is an exchange of
x25519public keys. A shared secret is then derived using these key's which is then further hashed viablake2bto derive a session key. This session key is then used withXChaCha20to encrypt CPU context states. In addition, the client is statically linked with the expected remote servers public key to prevent any man-in-the-middle attacks. This cryptographic handshake is relatively quick to setup and use.

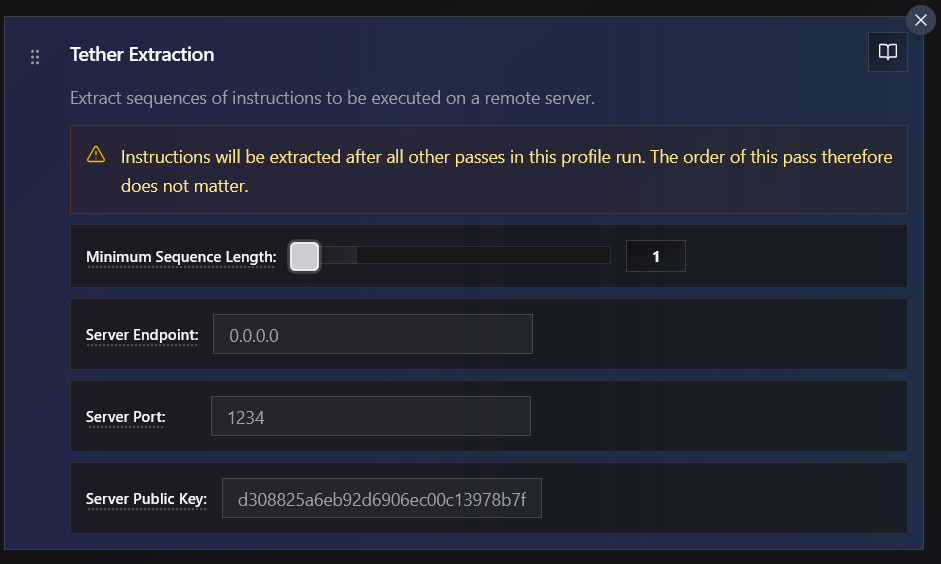

The instruction extraction process and embedded Tether client is processed by CodeDefender. Once you have established an account with the proper subscription you can add the following obfuscation pass:
CodeDefender allows you to to apply obfuscation passes and then Tether obfuscated functions if you so wish. This will make deobfuscation a hassle as parts of the obfuscated code will be removed.
The Tether server requires a few files to operate. Firstly, you need a .tether file, which contains extracted instructions from a program. You can create these files by signing up to CodeDefender and using the SaaS.
Secondly, you will need to generate a public/private key pair using our keygen tool. This will produce a public/private key in a folder. The public key is required by the SaaS to pin it. An example of public private keys would be:
# Execute keygen.exe
Secret key: 28923ae94d2ae8f4dcad8cdc05951e7355f3e6f61322b1bcb52c743e7f9674aa
Public key: d308825a6eb92d6906ec00c13978b7feaf8cf02c42ff4bc7fc9c535ae5321438Once you have your .tether file, public key, and private key, you can run a Tether server.
server.exe -h
Error: --pubkey, --privkey, and --tether are required.
Tether Server
Usage:
server [OPTIONS]
Options:
-h, --host HOST Host address to bind (default: 0.0.0.0)
-p, --port PORT Port number to bind (default: 1234)
-c, --max-clients Max number of connections at once (default 128)
--pubkey FILE Path to public key file (required)
--privkey FILE Path to private key file (required)
--tether FILE Path to tether file (required)
--help Show this help messageCurrently this codebase will only compile and run on Windows as there are a handful of API's that are Windows specific. If there is interest in Linux support please open a PR.
Requires:
cmake -B .build -T LLVM-MSVC_v143 -A x64
cd .build
cmake --build . --config Release
- This technique is difficult to scale.
- Only certain functions can allow for the extreme overhead of Tether.
- Depending on what code is Tether'ed, replay attacks are possible.
