wayscriber

TL;DR: wayscriber is a ZoomIt-like screen real-time annotation tool for Linux, written in Rust. Building from source requires Rust 1.85+. Quick start: set it up in four steps.

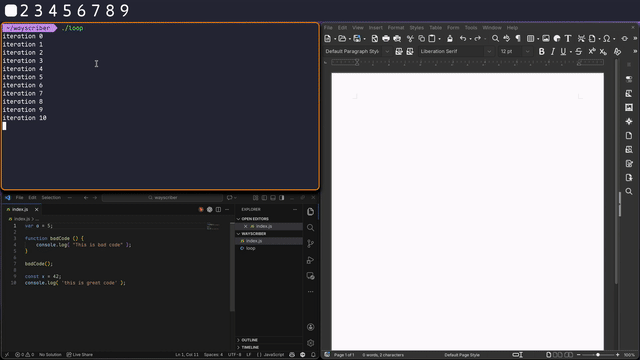

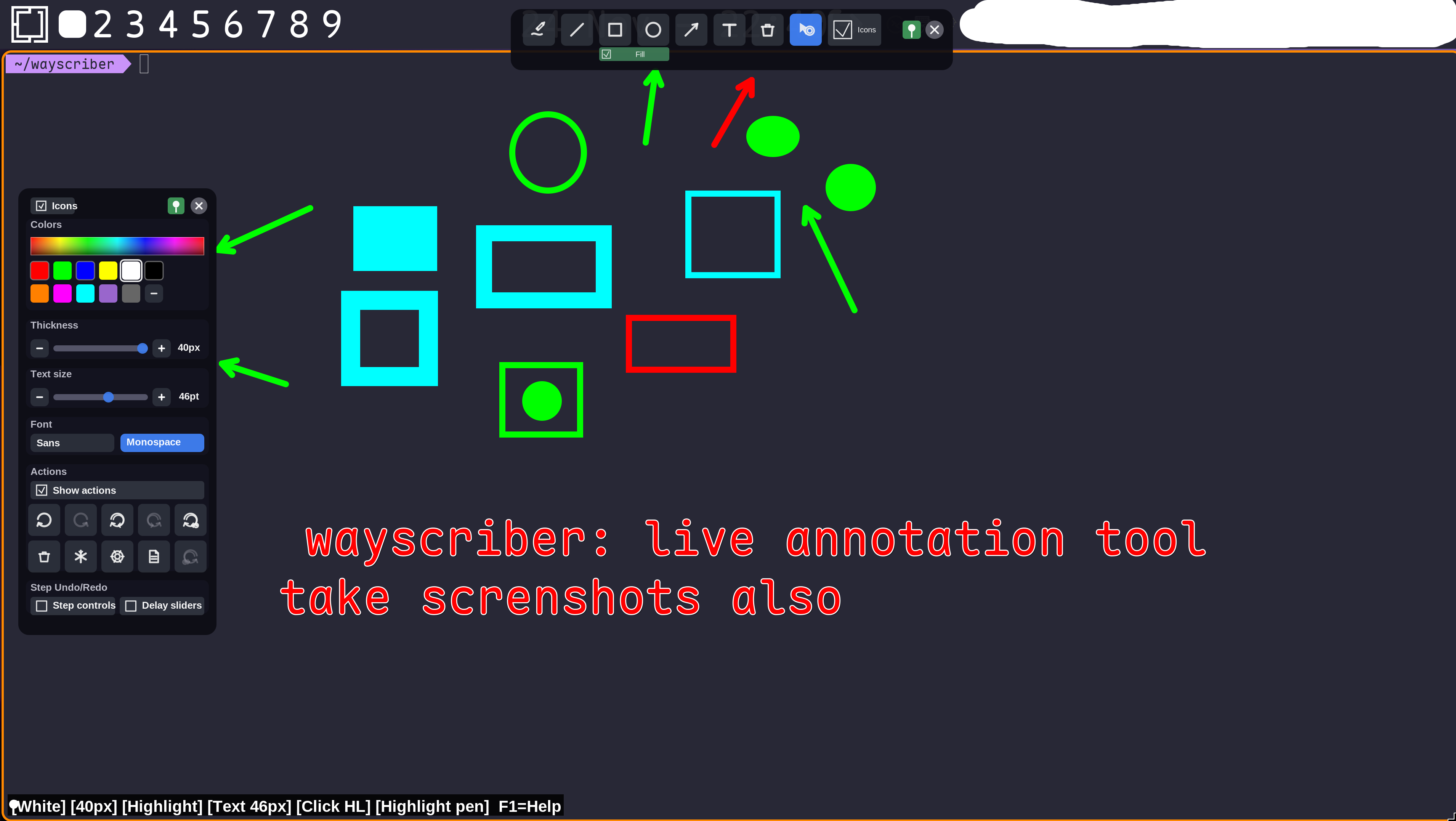

Gallery

Demo

• Why wayscriber?
• Quick Start
• Features at a Glance
• Demo
• Installation
• Running wayscriber
• Controls Reference
• Configuration
• Tablet/Stylus Input
• Troubleshooting
• Additional Information
• Project History
• Contributing & Credits

Why wayscriber?

• Annotate live over any app/window on any monitor; the overlay floats above without rearranging your workspace.
• Use shapes, arrows, and text to explain steps, give demos, or build quick guides.
• Redact/hide parts of the screen and grab screenshots (region, active window, fullscreen) in one keypress.
• Toggle instantly from a lightweight background daemon when you need it.
• Persist per-monitor/per-board canvases and tool state so your setup comes back after restarts.
• Presenter helpers: click highlights and “freeze screen” to pause what viewers see while apps keep running.
• Works on wlr-layer-shell compositors (Plasma KDE/KWin, Hyprland, Sway, Wayfire, River, …) with an xdg fallback for GNOME.
• Real-hardware tests where it works:
  • Ubuntu 25.10 GNOME (xdg fallback)
  • Fedora 43 KDE (Plasma, layer-shell)
  • Fedora 43 GNOME (xdg fallback)
  • Debian 13.2 KDE (Plasma, layer-shell)
  • Debian 13.2 GNOME (xdg fallback)
  • CachyOS 2025-August KDE (Plasma, layer-shell)
  • Hyprland on Arch (layer-shell)
  • Niri on Arch (layer-shell)
• Complements tools like Satty: Satty excels at capture → annotate → save workflows, while wayscriber stays resident as an always-available drawing layer with instant mode switching.

Quick Start

1. Install wayscriber

1. Debian/Ubuntu (latest release):
   • Download & install:

     wget -O wayscriber-amd64.deb https://github.com/devmobasa/wayscriber/releases/latest/download/wayscriber-amd64.deb
     sudo apt install ./wayscriber-amd64.deb

     Note: apt may print “Download is performed unsandboxed as root …” when installing a local file; this is expected.
2. Fedora/RHEL (latest release):
   • Download & install:

     wget -O wayscriber-x86_64.rpm https://github.com/devmobasa/wayscriber/releases/latest/download/wayscriber-x86_64.rpm
     sudo rpm -Uvh wayscriber-x86_64.rpm

3. Arch Linux (AUR):
   • yay -S wayscriber (source) or paru -S wayscriber
   • yay -S wayscriber-bin (prebuilt) or paru -S wayscriber-bin
4. Other distros: see Installation, then install wl-clipboard, grim, and slurp for the fastest screenshot workflow.

2. Choose how to run it:

Option 1: One-Shot Mode (Simple)

Launch wayscriber when you need it, exit when done:

wayscriber --active

Or bind to a key in ~/.config/hypr/hyprland.conf:

bind = SUPER, D, exec, wayscriber --active

Press F10 for help, F11 for configurator, Escape/Ctrl+Q to exit, and F12 to toggle the status bar. Use Ctrl+Shift+F to freeze/unfreeze the screen while keeping your drawings, or start already frozen with wayscriber --freeze.

Option 2: Daemon Mode (Background Service)

Run wayscriber in the background and toggle it with a keybind:

Enable the service:

systemctl --user enable --now wayscriber.service

Add keybinding to ~/.config/hypr/hyprland.conf:

bind = SUPER, D, exec, pkill -SIGUSR1 wayscriber

Reload Hyprland:

hyprctl reload

Note: If the daemon doesn't start after a reboot, see Troubleshooting.

Alternative: Use Hyprland's exec-once instead of systemd:

exec-once = wayscriber --daemon
bind = SUPER, D, exec, pkill -SIGUSR1 wayscriber

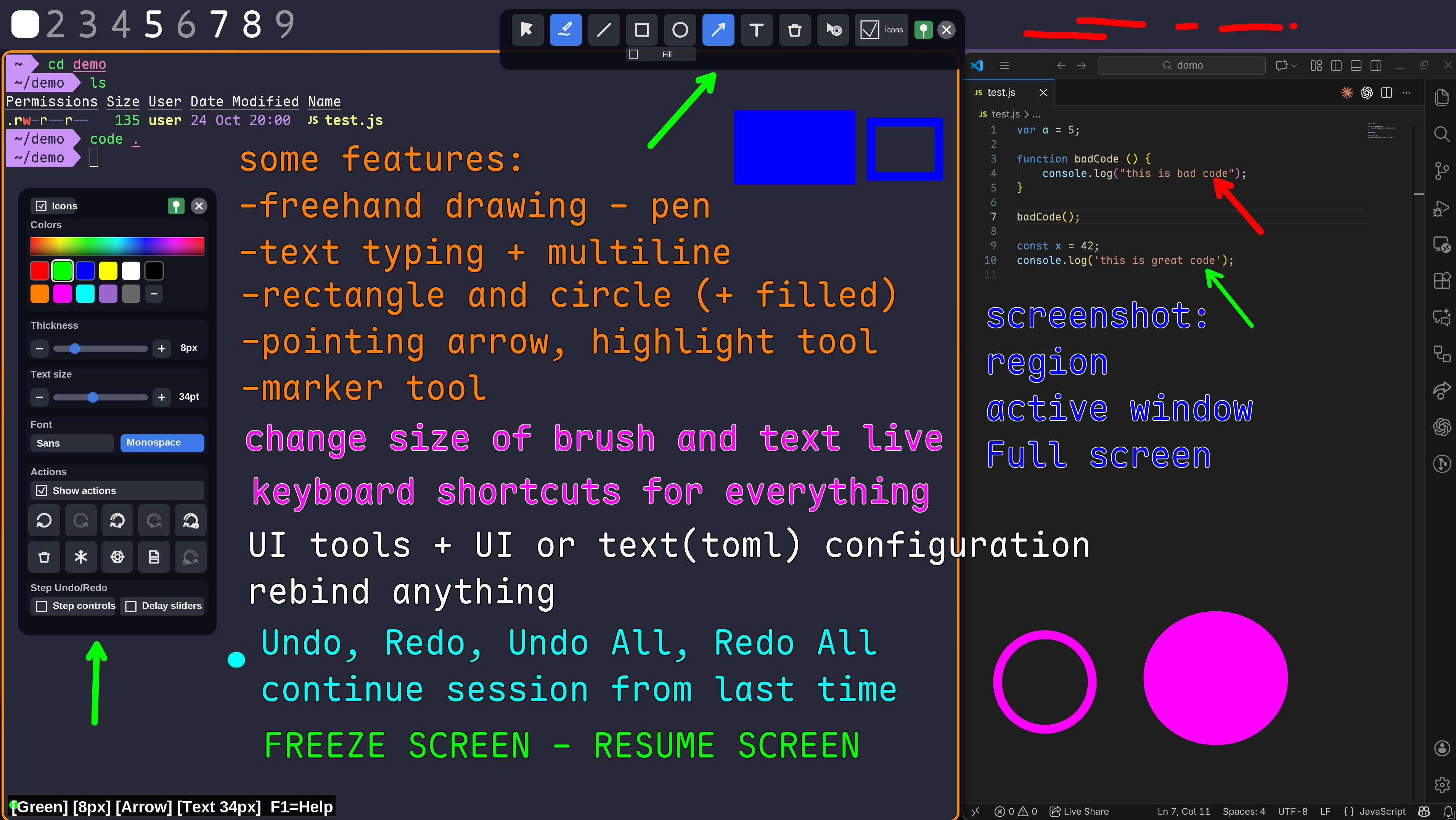

Features at a Glance

• Drawing & editing: Freehand pen, straight lines, rectangles, ellipses, arrows, and multiline text with smoothing; undo & redo; quick line-width and color changes via hotkeys or scroll.
• Board modes: Whiteboard, blackboard, and transparent overlays, each with isolated frames and auto pen contrast; snap back to transparent with Ctrl+Shift+T.
• Floating toolbars: Pin/unpin top and side toolbars (F2/F9) with icon or text display modes, extended color palettes, undo/redo actions, and optional delay sliders; hover for tooltips even when frozen.
• Capture shortcuts: Full-screen saves, active-window grabs, and region capture to file or clipboard using grim, slurp, and wl-clipboard when available.
• Session persistence: Opt-in per board/monitor storage that restores your canvas plus pen color & thickness; inspect with wayscriber --session-info or clear with wayscriber --clear-session.
• Freeze / pause view: Toggle freeze to pause what viewers see while your apps keep running; hotkey Ctrl+Shift+F or start frozen with wayscriber --freeze.
• Workflow helpers: Background daemon with SIGUSR1 toggle, tray icon, one-shot mode, live status bar, and in-app help overlay (F10).
• Context menus & selection: Right-click or press Shift+F10 for per-shape actions (delete, duplicate, layer order, lock/unlock, properties) with keyboard navigation and selection halos for clarity.
• Click highlights: Presenter-style halo on mouse clicks with configurable colors, radius, and duration; follows your pen color by default, toggle the effect with Ctrl+Shift+H or swap to highlight-only mode with Ctrl+Alt+H.
• Configurator & CLI: Launch wayscriber-configurator (or press F11) to tweak colors, bindings, persistence, compression, and more; power users can edit the TOML or use CLI switches.
• Performance & reliability: Dirty-region rendering keeps redraws fast, while session files use atomic writes, size limits, compression, and backups for safety.

Session Persistence

Wayscriber can remember your boards between runs (per monitor and per board color) along with pen color/thickness. Persistence is opt-in. Toggle it from the configurator (F11 → Session tab) or launch the GUI directly:

wayscriber-configurator

Prefer text? Edit ~/.config/wayscriber/config.toml. Helpful commands:

wayscriber --session-info     # Inspect saved sessions
wayscriber --clear-session    # Remove stored boards

Grab a walk-through in docs/CONFIG.md if you want to edit the TOML by hand. See the [ui.toolbar] section there to pin toolbars, switch icon/text mode, and show/hide colors/actions/delay sliders.

Demo

demo.mp4

Installation

See docs/SETUP.md for detailed walkthroughs.

GitHub release packages (Debian/Ubuntu & Fedora/RHEL)

Use the stable filenames from the latest release:

# Debian/Ubuntu
wget -O wayscriber-amd64.deb https://github.com/devmobasa/wayscriber/releases/latest/download/wayscriber-amd64.deb
sudo apt install ./wayscriber-amd64.deb
# Note: apt may print “Download is performed unsandboxed as root …” when installing a local file; this is expected.

# Fedora/RHEL
wget -O wayscriber-x86_64.rpm https://github.com/devmobasa/wayscriber/releases/latest/download/wayscriber-x86_64.rpm
sudo rpm -Uvh wayscriber-x86_64.rpm

Arch Linux (AUR)

# yay – build from source
yay -S wayscriber

# yay – prebuilt binaries
yay -S wayscriber-bin

# paru – build from source
paru -S wayscriber

# paru – prebuilt binaries
paru -S wayscriber-bin

Tablet/Stylus Input

Tablet support for Wayland (zwp_tablet_v2) is compiled in by default. Enable it in your config:

[tablet]
enabled = true
pressure_enabled = true
min_thickness = 1.0
max_thickness = 8.0

Notes:

• Pressure sets a uniform thickness per stroke; the peak pressure is preserved on lift.
• Stylus hover/tap/drag works on both the canvas and toolbars.
• To build without tablet support, use cargo build --no-default-features.

The package installs the user service at /usr/lib/systemd/user/wayscriber.service.

Other Distros

Install dependencies:

Ubuntu / Debian:

sudo apt-get install libcairo2-dev libwayland-dev libpango1.0-dev

Fedora:

sudo dnf install gcc gcc-c++ make pkgconf-pkg-config cairo-devel wayland-devel pango-devel libxkbcommon-devel cairo-gobject-devel

Optional but recommended for screenshots:

sudo apt-get install wl-clipboard grim slurp   # Debian/Ubuntu
sudo dnf install wl-clipboard grim slurp       # Fedora

Build from source:

git clone https://github.com/devmobasa/wayscriber.git
cd wayscriber
cargo build --release

The binary will be at target/release/wayscriber.

Manual Install Script

cargo build --release
./tools/install.sh

The installer places the binary at ~/.local/bin/wayscriber, creates ~/.config/wayscriber/, and offers to configure Hyprland.

Tablet/Stylus Input

Tablet support for Wayland (zwp_tablet_v2) is compiled in by default. Enable it in your config:

[tablet]
enabled = true
pressure_enabled = true
min_thickness = 1.0
max_thickness = 8.0

Notes:

• Pressure sets a uniform thickness per stroke; the peak pressure is preserved on lift.
• Stylus hover/tap/drag works on both the canvas and toolbars.
• To build without tablet support, use cargo build --no-default-features.

Running wayscriber

Daemon Mode

Run wayscriber in the background and toggle with a keybind.

Enable the service:

systemctl --user enable --now wayscriber.service

Add keybinding to ~/.config/hypr/hyprland.conf:

bind = SUPER, D, exec, pkill -SIGUSR1 wayscriber

Reload Hyprland:

hyprctl reload

The daemon shows a system tray icon (may be in Waybar drawer). Press Super+D to toggle overlay, right-click tray icon for options.

Service commands:

systemctl --user status wayscriber.service
systemctl --user restart wayscriber.service
journalctl --user -u wayscriber.service -f

Note: If the daemon doesn't start after reboot, see Troubleshooting.

Alternative: Use Hyprland's exec-once instead of systemd:

exec-once = wayscriber --daemon
bind = SUPER, D, exec, pkill -SIGUSR1 wayscriber

One-Shot Mode

Launch directly into an active overlay without the daemon:

wayscriber --active
wayscriber --active --mode whiteboard
wayscriber --active --mode blackboard

Bind it to keys if you prefer:

bind = $mainMod, D, exec, wayscriber --active
bind = $mainMod SHIFT, D, exec, wayscriber --active --mode whiteboard

Exit the overlay with Escape or Ctrl+Q.

Screenshot Shortcuts

wayscriber ships with keyboard shortcuts for quick captures:

• Ctrl+C – copy the entire screen to the clipboard.
• Ctrl+S – save the entire screen as a PNG (uses your capture directory).
• Ctrl+Shift+C – select a region and copy it to the clipboard.
• Ctrl+Shift+S – select a region and save it as a PNG.
• Ctrl+Shift+O – capture the active window (Hyprland fast path, portal fallback).
• Ctrl+6 / Ctrl+Shift+6 – reserved for remembered-region clipboard/file captures (coming soon).

Requirements: install wl-clipboard, grim, and slurp for the fastest Hyprland workflow. If they are missing, wayscriber falls back to xdg-desktop-portal's interactive picker.

Controls Reference

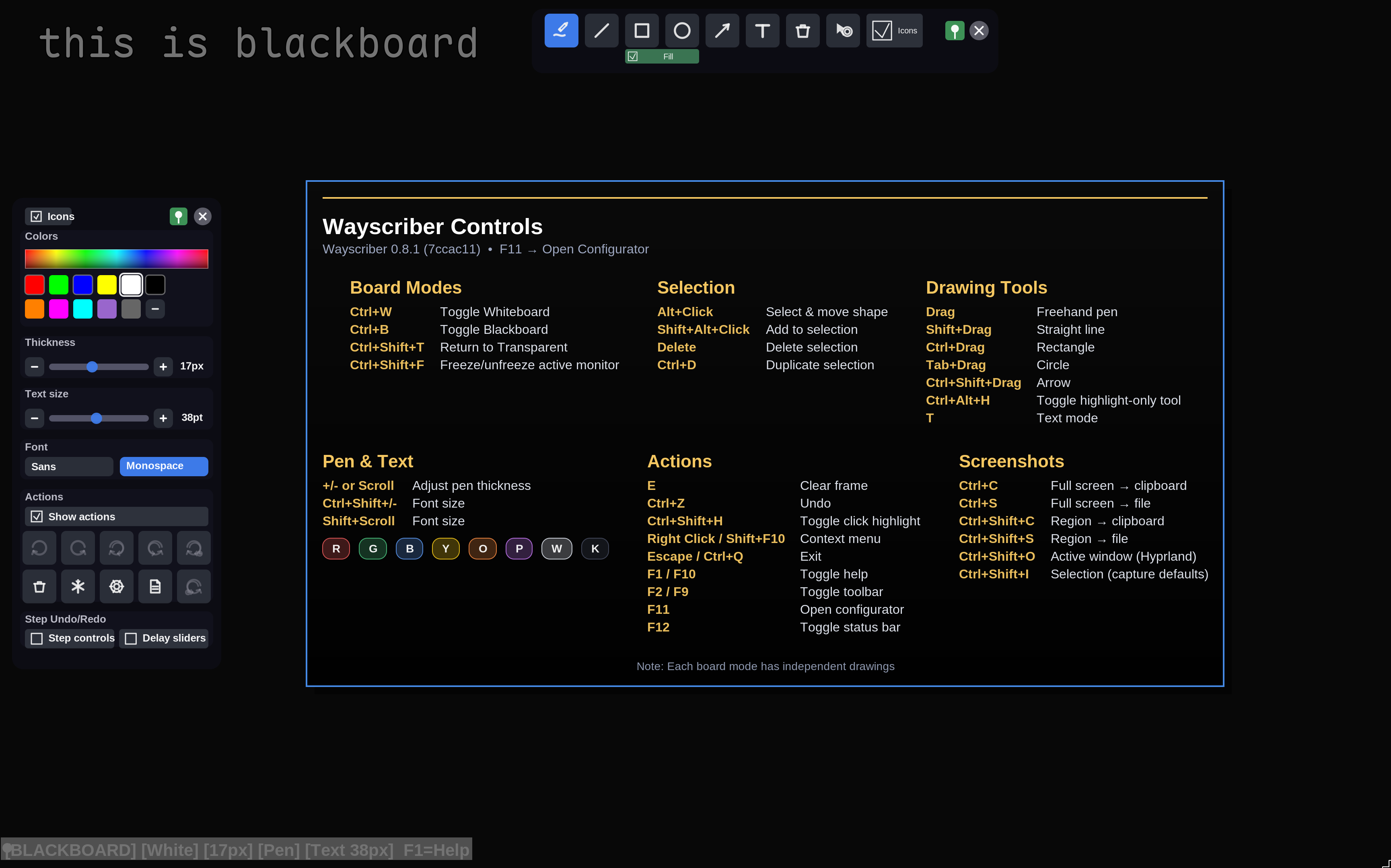

Press F10 at any time for the in-app keyboard and mouse cheat sheet.

Action	Key/Mouse
Drawing Tools
Freehand pen	Default (drag with left mouse button)
Straight line	Hold Shift + drag
Rectangle	Hold Ctrl + drag
Ellipse/Circle	Hold Tab + drag
Arrow	Hold Ctrl+Shift + drag
Highlight brush (highlight-only)	Ctrl+Alt+H
Text mode	Press T, click to position, type, Shift+Enter for new line, Enter to finish
Board Modes
Toggle Whiteboard	Ctrl+W (press again to exit)
Toggle Blackboard	Ctrl+B (press again to exit)
Return to Transparent	Ctrl+Shift+T
Colors
Red	R
Green	G
Blue	B
Yellow	Y
Orange	O
Pink	P
White	W
Black	K
Line Thickness
Increase	+, =, or scroll down
Decrease	-, _, or scroll up
Font Size
Increase	Ctrl+Shift++ or Shift + scroll down
Decrease	Ctrl+Shift+- or Shift + scroll up
Editing
Undo last shape	Ctrl+Z
Redo last undo	Ctrl+Shift+Z or Ctrl+Y
Clear all	E
Cancel action	Right-click or Escape
Toolbars & UI
Toggle toolbars	F2 or F9
Toggle help overlay	F10
Launch configurator	F11
Toggle status bar	F12
Toggle click highlight	Ctrl+Shift+H
Toggle freeze	Ctrl+Shift+F
Highlight brush (highlight-only)	Ctrl+Alt+H
Exit
Exit overlay	Escape or Ctrl+Q

Configuration

• Config file location: ~/.config/wayscriber/config.toml.

• Copy defaults to get started:

  mkdir -p ~/.config/wayscriber
  cp config.example.toml ~/.config/wayscriber/config.toml

• Key sections to tweak:

  • [drawing] – default color, thickness, and font settings.
  • [performance] – buffer count and VSync.
  • [ui] – status bar visibility and position.
  • [board] – whiteboard/blackboard presets and auto-adjust options.

Example snippet:

[drawing]
default_color = "red"
default_thickness = 3.0

[performance]
buffer_count = 3
enable_vsync = true

See docs/CONFIG.md for the full configuration reference.

Troubleshooting

Daemon not starting after reboot

If using systemd: User services don't start at boot by default. Enable lingering:

loginctl enable-linger $USER

Simpler alternative: Use Hyprland's exec-once instead:

exec-once = wayscriber --daemon

Service won't start

• Check status: systemctl --user status wayscriber.service
• Tail logs: journalctl --user -u wayscriber.service -f
• Restart: systemctl --user restart wayscriber.service

Overlay not appearing

1. Verify Wayland session: echo $WAYLAND_DISPLAY
2. Ensure your compositor supports wlr-layer-shell (Hyprland, Sway, river, etc.)
3. Run with logs for clues: RUST_LOG=info wayscriber --active

Config issues

• Confirm the file exists: ls -la ~/.config/wayscriber/config.toml
• Watch for TOML errors in logs: RUST_LOG=info wayscriber --active

Performance

Tune [performance] in config.toml if memory or latency is a concern:

[performance]
buffer_count = 2
enable_vsync = true

Additional Information

Platform Support

Platform	Status	Notes
Wayland (Hyprland, Sway, etc.)	✅ SUPPORTED	Requires wlr-layer-shell protocol

Performance Characteristics

• Triple-buffered rendering prevents flicker during fast drawing.
• Frame-synchronized updates (VSync) keep strokes smooth.
• Dirty-region updates minimize CPU/GPU overhead.
• Tested to sustain 60 FPS on 1080p–4K displays.

Architecture Overview

wayscriber/
├── src/
│   ├── main.rs           # Entry point, CLI parsing
│   ├── daemon.rs         # Daemon mode with signal handling
│   ├── ui.rs             # Status bar and help overlay rendering
│   ├── util.rs           # Utility functions
│   ├── backend/
│   │   ├── mod.rs        # Backend module
│   │   └── wayland.rs    # Wayland wlr-layer-shell implementation
│   ├── config/
│   │   ├── mod.rs        # Configuration loader and validator
│   │   ├── types.rs      # Config structure definitions
│   │   └── enums.rs      # Color specs and enums
│   ├── draw/
│   │   ├── mod.rs        # Drawing module
│   │   ├── color.rs      # Color definitions and constants
│   │   ├── font.rs       # Font descriptor for Pango
│   │   ├── frame.rs      # Frame container for shapes
│   │   ├── shape.rs      # Shape definitions (lines, text, etc.)
│   │   └── render.rs     # Cairo/Pango rendering functions
│   └── input/
│       ├── mod.rs        # Input handling module
│       ├── state.rs      # Drawing state machine
│       ├── events.rs     # Keyboard/mouse event types
│       ├── modifiers.rs  # Modifier key tracking
│       └── tool.rs       # Drawing tool enum
├── tools/                # Helper scripts (install, run, reload)
├── packaging/            # Distribution files (service, PKGBUILD)
├── docs/                 # Documentation
└── config.example.toml   # Example configuration

Documentation

• docs/SETUP.md – system setup and installation details
• docs/CONFIG.md – configuration reference

Comparison with ZoomIt

Feature	ZoomIt (Windows)	wayscriber (Linux)
Freehand drawing	✅	✅
Straight lines	✅	✅
Rectangles	✅	✅
Ellipses	✅	✅
Arrows	✅	✅
Text annotations	✅	✅
Whiteboard mode	✅ (W key)	✅ (Ctrl+W)
Blackboard mode	✅ (K key)	✅ (Ctrl+B)
Multi-line text	❌	✅ (Shift+Enter)
Custom fonts	❌	✅ (Pango)
Color selection	✅	✅ (8 colors)
Undo	✅	✅
Clear all	✅	✅
Help overlay	❌	✅
Status bar	❌	✅
Configuration file	❌	✅
Scroll wheel thickness	❌	✅
Zoom functionality	✅	❌ (not planned)
Break timer	✅	❌ (not planned)
Screen recording	✅	❌ (not planned)

Roadmap

• Native Wayland wlr-layer-shell implementation
• Configuration file support
• Status bar and help overlay
• Scroll wheel thickness adjustment
• Daemon mode with global hotkey toggle (Super+D)
• System tray integration
• Autostart with systemd user service
• Multi-line text support (Shift+Enter)
• Custom fonts with Pango rendering
• Whiteboard/blackboard modes with isolated frames
• Board mode configuration (colors, auto-adjust)
• CLI --mode flag for initial board selection
• Multi-monitor support with per-monitor surfaces
• Additional shapes (filled shapes)
• Highlighter/Highlight brush
• Save annotations to image file
• Eraser tool
• Color picker

License

MIT License — see LICENSE for details.

Contributing & Credits

• Pull requests and bug reports are welcome. Priority areas include compositor compatibility testing, multi-monitor support, and new drawing tools.

• Development basics:

  cargo build
  cargo run -- --active
  cargo test
  cargo clippy
  cargo fmt

  • Use ./tools/fetch-all-deps.sh to prefetch crates for the main binary and configurator before running frozen/offline builds.

• Acknowledgments:

  • Inspired by ZoomIt by Mark Russinovich
  • Built for Hyprland by vaxry
  • Similar ideas from Gromit-MPX
  • Development approach inspired by DHH's Omarchy
  • Uses Cairo and smithay-client-toolkit

• This tool was developed with AI assistance:

  • Initial concept & planning: ChatGPT
  • Architecture review & design: Codex
  • Implementation: Claude Code (Anthropic)

Created as a native Wayland implementation of ZoomIt-style annotation features for Linux desktops.
