Transporter

Architecture

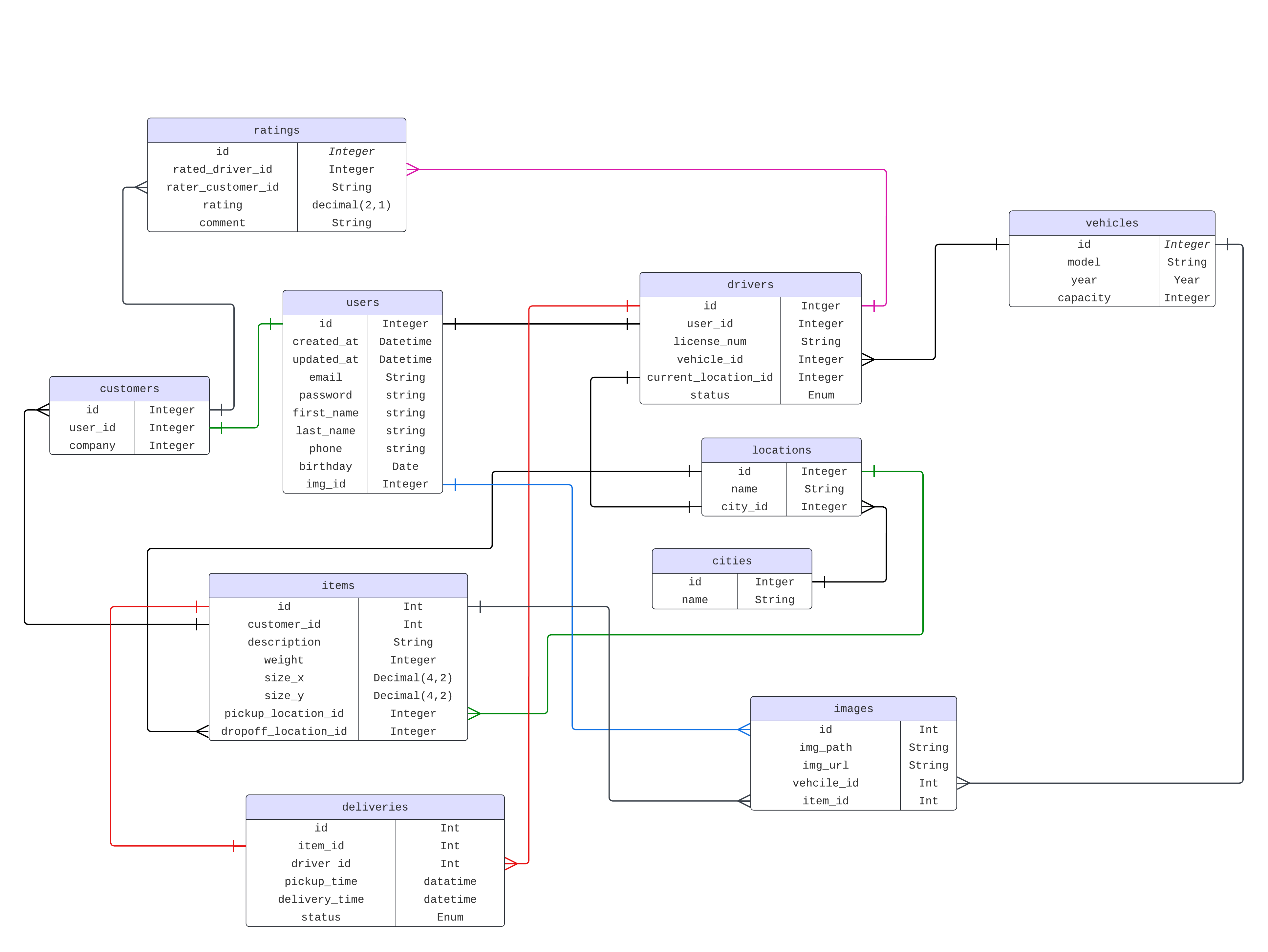

Database design

tldr

To make this project work in your machine, just follow those instruction:

1. Create a database and note its name. For this example, since the application is called "transporter," we'll call the database transporter.
2. In the root directory, ensure you have a file named exactly env.json, containing the details to connect to your database (password, username, etc.). Refer to the Environment section in this README for the correct format. You should also find a file called env.backup, which you can use as a reference to create your env.json file correctly.
3. Since this is your first time running the application, set the WORKING_ENV key in the env.json file to dev. This ensures that any existing tables in your database will not be deleted. If your database is not empty and you want a fresh start, set WORKING_ENV to test, which will delete all tables listed under the MYSQL_DB key in the env.json file.
4. To seed (populate the database with dummy data) your database with random data, follow the instructions in the Seeding new data section of this README.

Example:

from db_seed import Seed

s = Seed()
s.up()

You can use the db.Sql file, which will create the database, all tables, and dummy data. In this case, the database will be named transporter, so ensure it is included in the env.json file.

sudo mysql -u`user` `db_name` < db.sql

Environment

The file called env.json is the file contains all the database details, Be sure to check it out first and give it your database connection details.

This is it's structure:

{
    "MYSQL_USER" : "root", /* User of your db */
    "MYSQL_PWD" : "root", /* password of your database */
    "MYSQL_HOST" : "localhost", /* host of your db */
    "MYSQL_DB" : "db_name",
    "WORKING_ENV" : "dev" /* 'dev' or 'test' */
}

WORKING_ENV will be used by the application decide the environment (should it use a fresh database or the existing database).

NOTE: Setting WORKING_ENV to test will Couse all the tables in the database MYSQL_DB to be deleted.

Seeding new data

To seed new data to the database, you can use the class Seed in the file db_seed.py, then create new instance and set the optional reset value to True if you want a fresh seeded database.

from db_seed import Seed
s = Seed()
# Set the optional value 'reset' to True to delete all the existing tables

To seed just a particular table you can call on of those functions:

# Integers represent many rows that will be created
# All those integers are optional, there default value is 69
s.seed_cities_locations(12)
s.seed_customers(20)
s.seed_drivers(30)
s.seed_deliveries(15)
s.seed_ratings(14)

Or to seed all tables at once you do it like this:

# All those arguments are optional, there default value is the some as the intgers that I sepesifiedd in this example
s.up(self, customers=2, drivers=3, deliveries=10, ratings=30)
