Configuring Active Directory within Azure VMs

Prerequisites and Installation

This tutorial outlines the prerequisites and installation steps for Configuring Active Directory within Azure VMs

Environments and Technologies Used

• Remote Desktop
• PowerShell
• Active Directory Domain Services

Operating Systems Used

• Windows Server 2022
• Windows 10 Pro

List of Prerequisites

• Azure Subscription and Virtual Network
• Windows Server VM
• Static IP and DNS Configuration

Installation Steps

Step 1: Set Up Virtual Machines in Azure

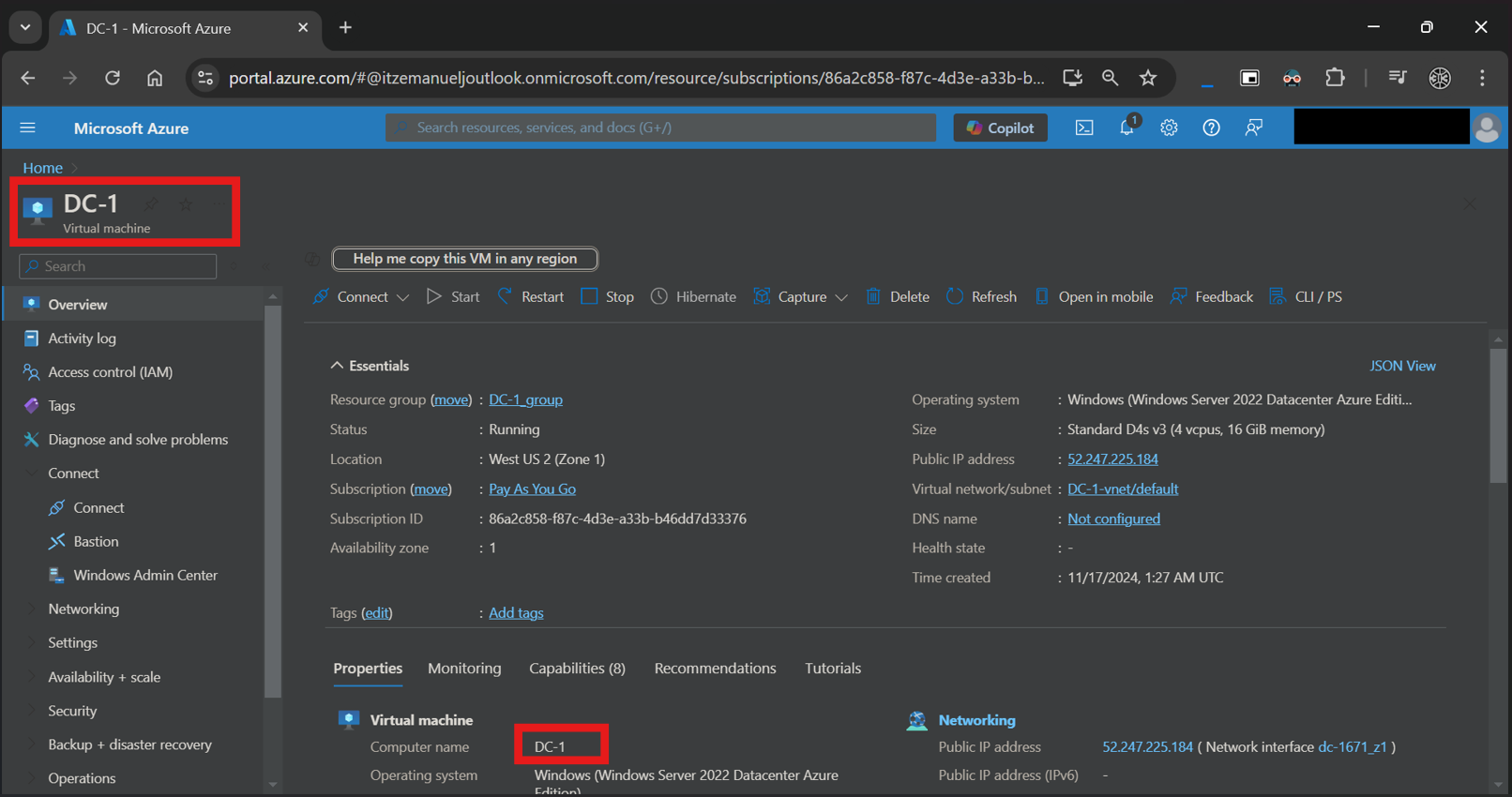

1. Create DC-1: Deploy a Windows Server 2022 VM in Azure.- If you need help creating your virtual machines, please see my tutorial here

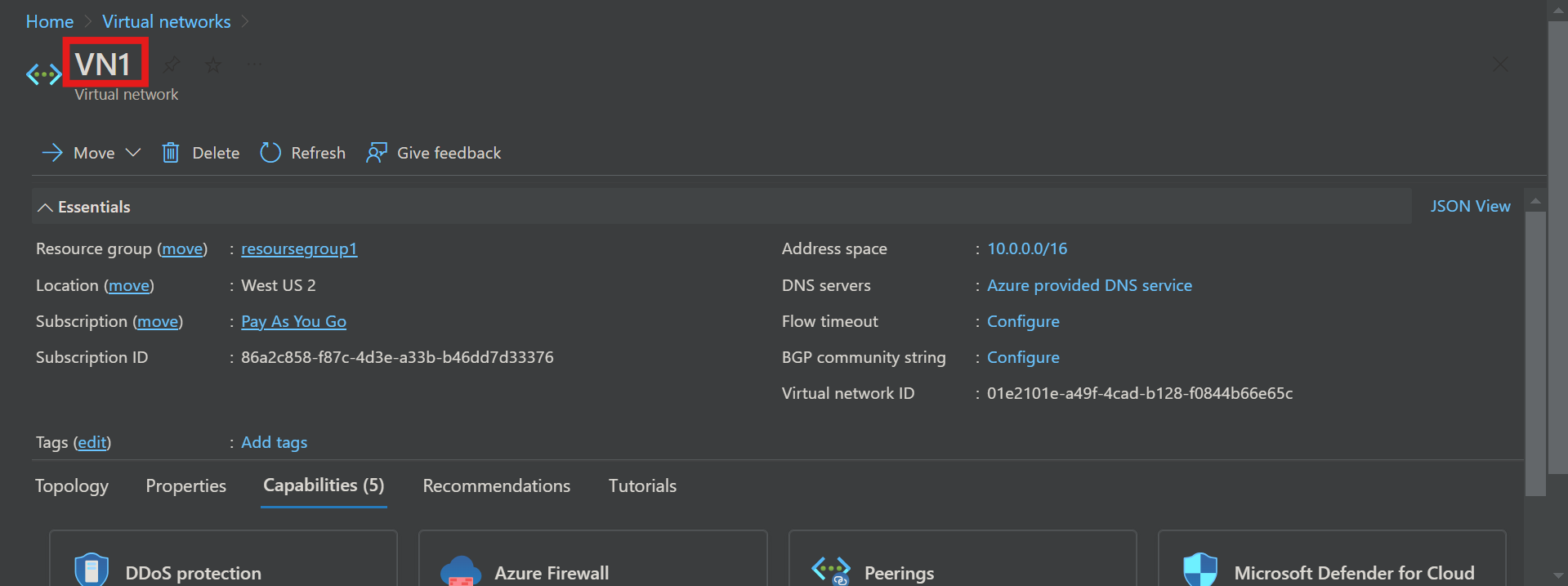

2. Place it in a new Virtual Network .
3. In this tutorial we will name this Virtual Network VN1

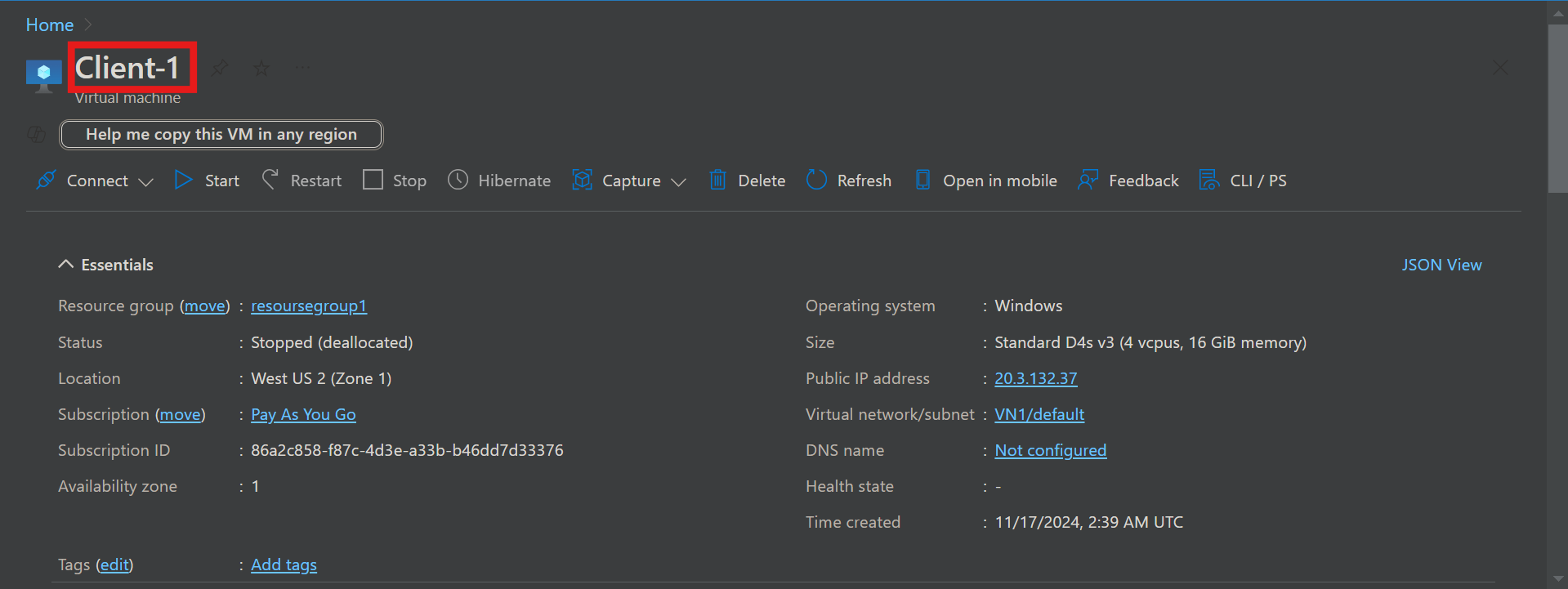

4. Create Client-1: Deploy a Windows 10 VM in the same VNET as DC-1.

Step 2: Configure DC-1 (Domain Controller)

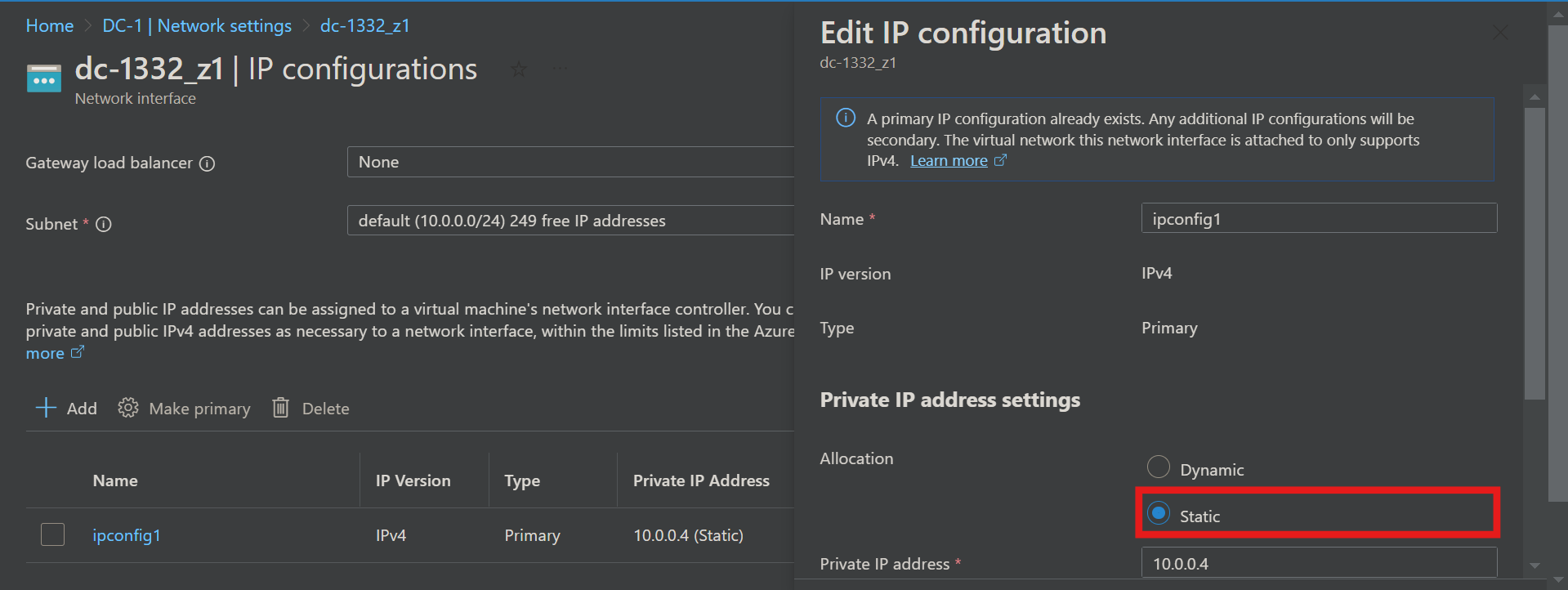

1. Assign a Static Private IP:

• Navigate to DC-1's Networking settings in the Azure Portal and set the private IP to static.

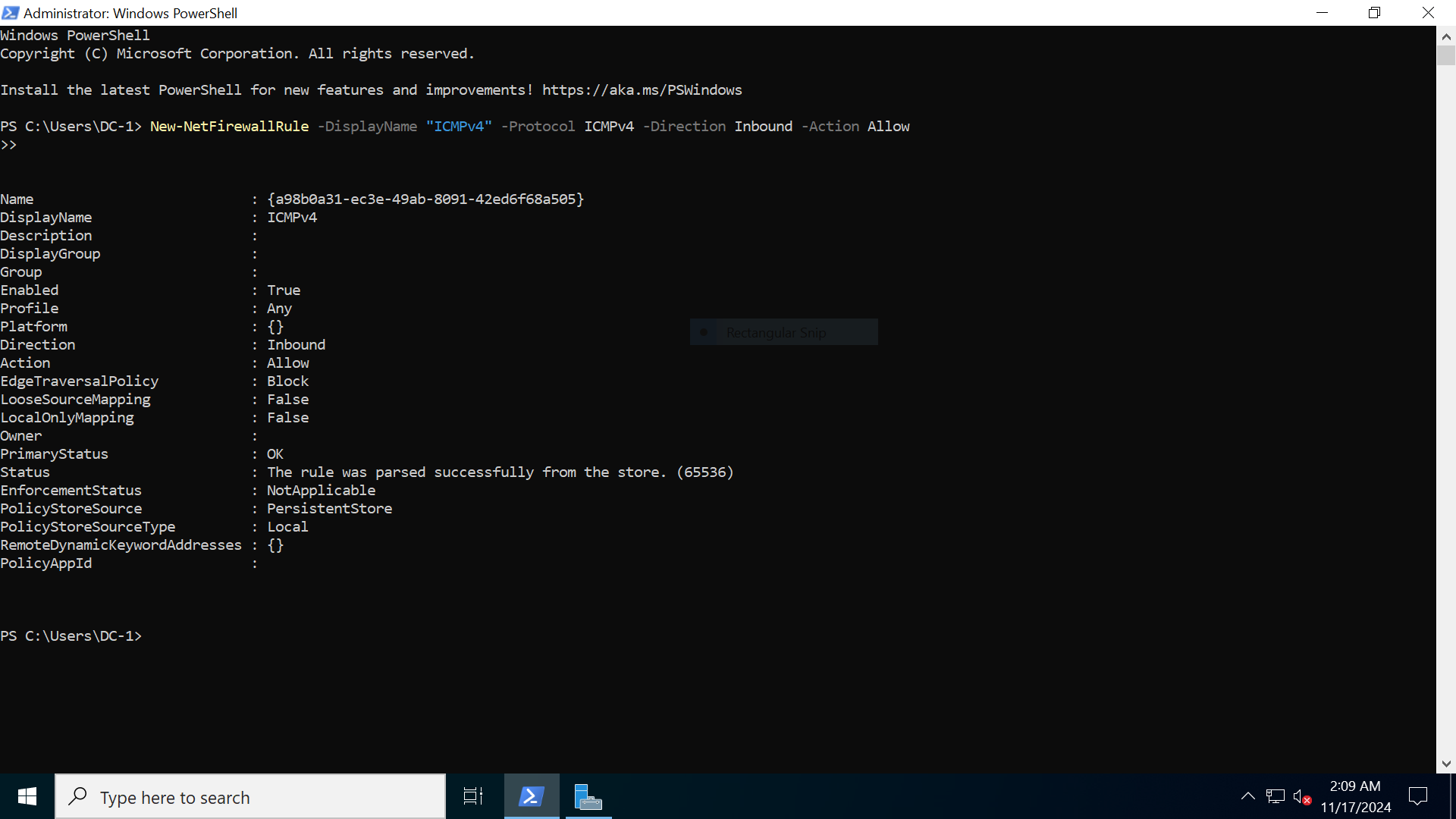

2. Enable ICMP (Ping) on DC-1:

• Open a PowerShell window on DC-1 and run the following command:

  New-NetFirewallRule -DisplayName "ICMPv4" -Protocol ICMPv4 -Direction Inbound -Action Allow



3: Install Active Directory Domain Services:

1. Log into DC-1 and open Server Manager.

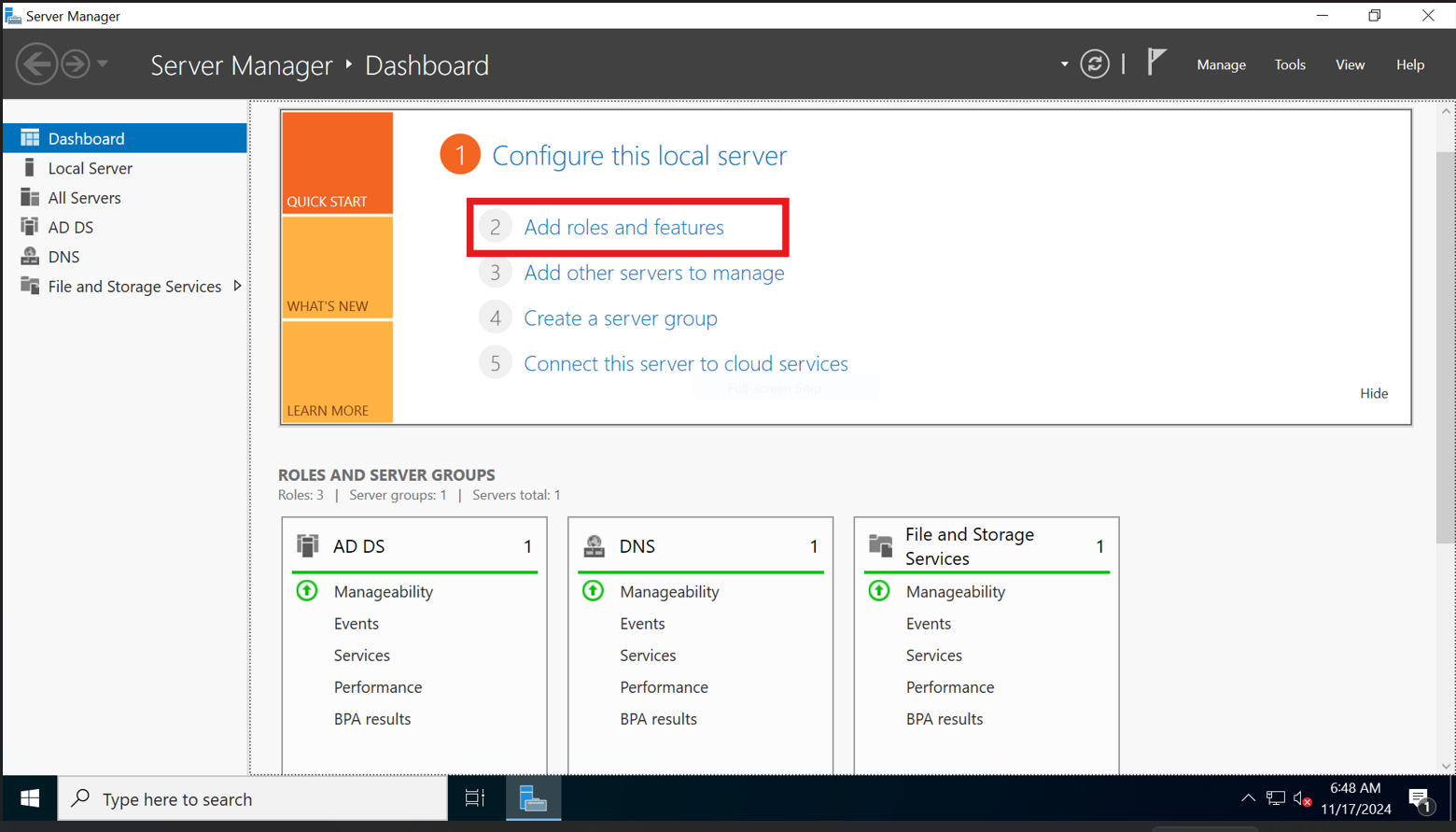

2. Click Add Roles and Features:
   • Choose Active Directory Domain Services.
3. After installation, click the notification to Promote this server to a domain controller:
   • After installation, select Promote this server to a domain controller and set up a new forest .
   • In this tutorial we will name our domain controller (mydomain.com).

4. Log Back In:

• Log into DC-1

Step 3: Configure Client-1

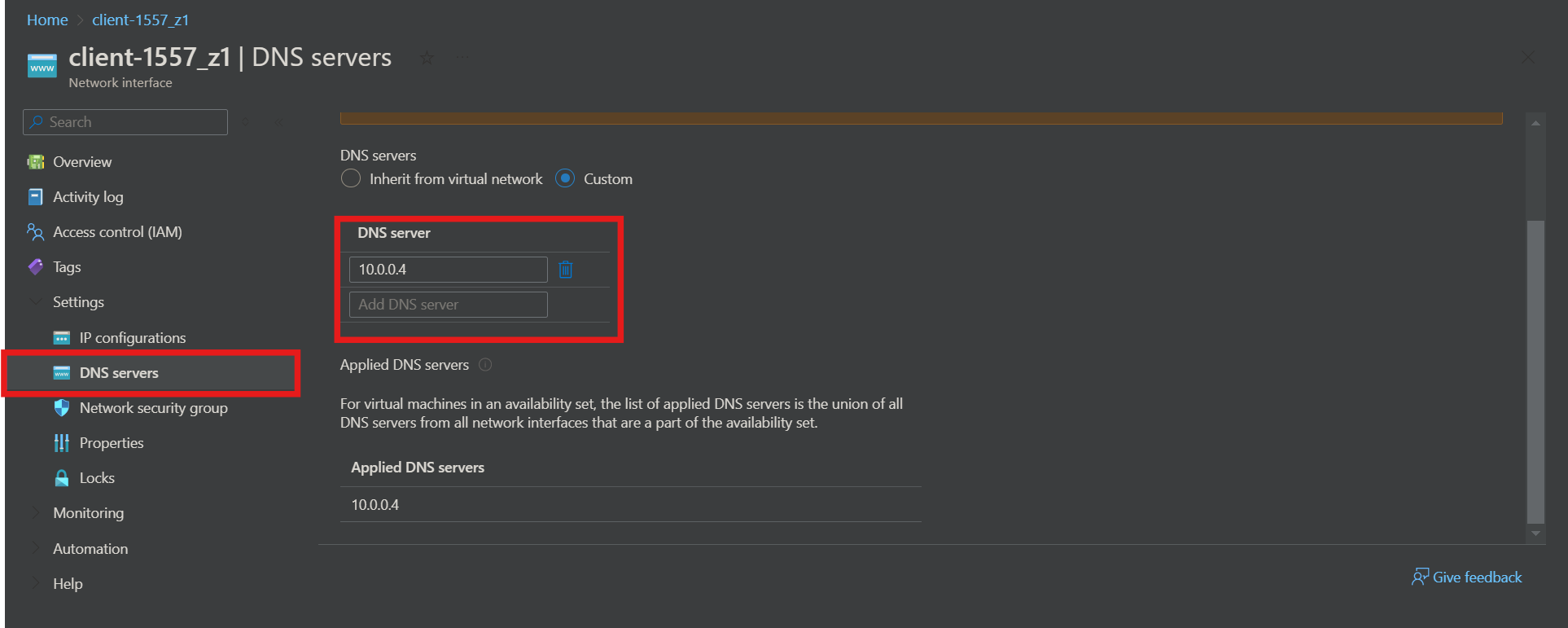

Set the Client to Use DC-1 as DNS Server:

1. Navigate to Client-1's Networking settings in the Azure portal.
2. Set the DNS server server to the private IP address of DC-1.

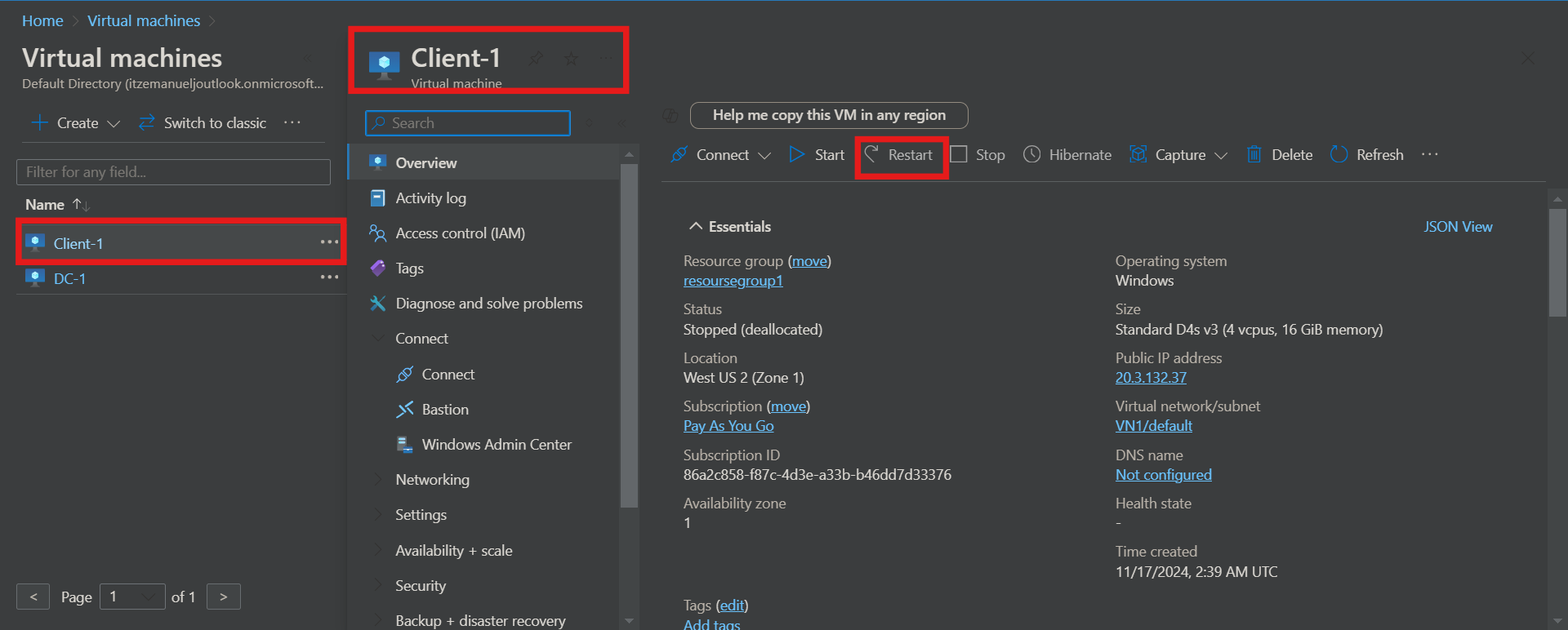

3. Restart Client-1.

Join Client-1 to the Domain:

1. Log into Client-1 and Navigate to Settings > System > About.
2. Under Rename this PC (advanced), click Change:
   • Select Domain and enter mydomain.com.
3. Provide credentials for mydomain.com\JaneDoe.
4. Restart Client-1 to apply the changes.

Step 4: Create Organizational Units and Users

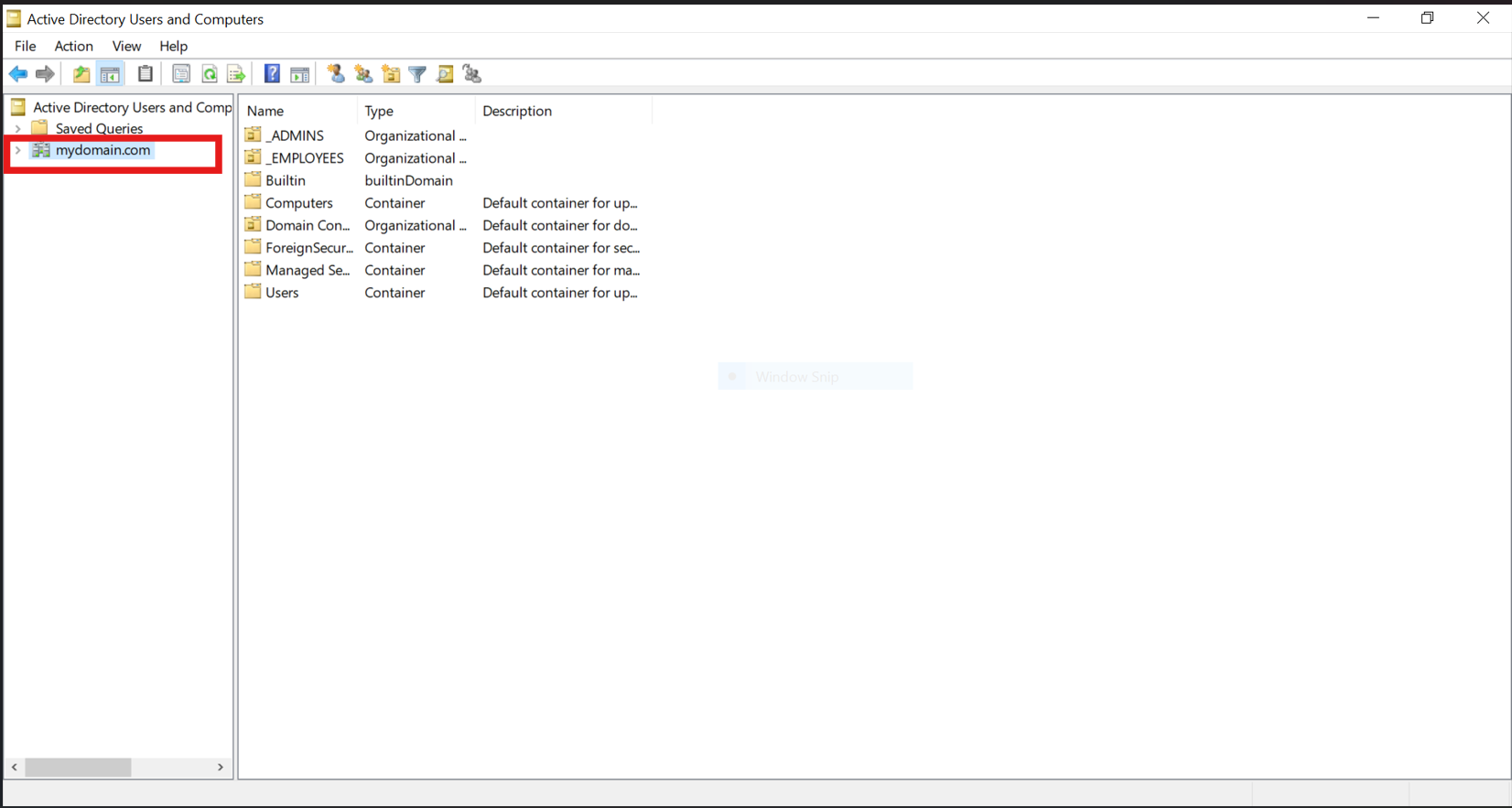

Log into DC-1 and open Active Directory Users and Computers:

1. Right-click our domain (mydomain.com) and create two Organizational Units (OUs):

   • _EMPLOYEES
   • _ADMINS

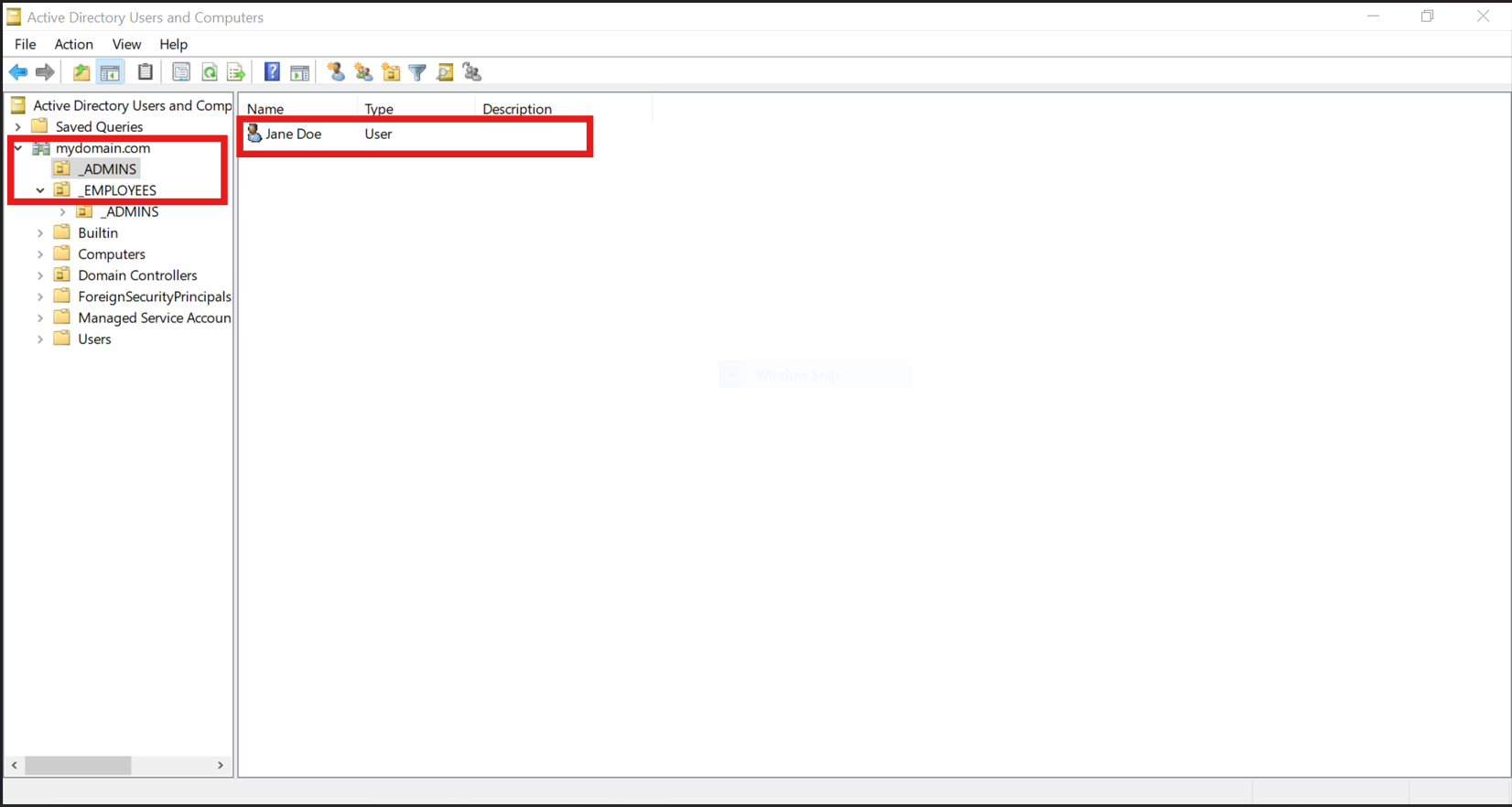

Add a User:

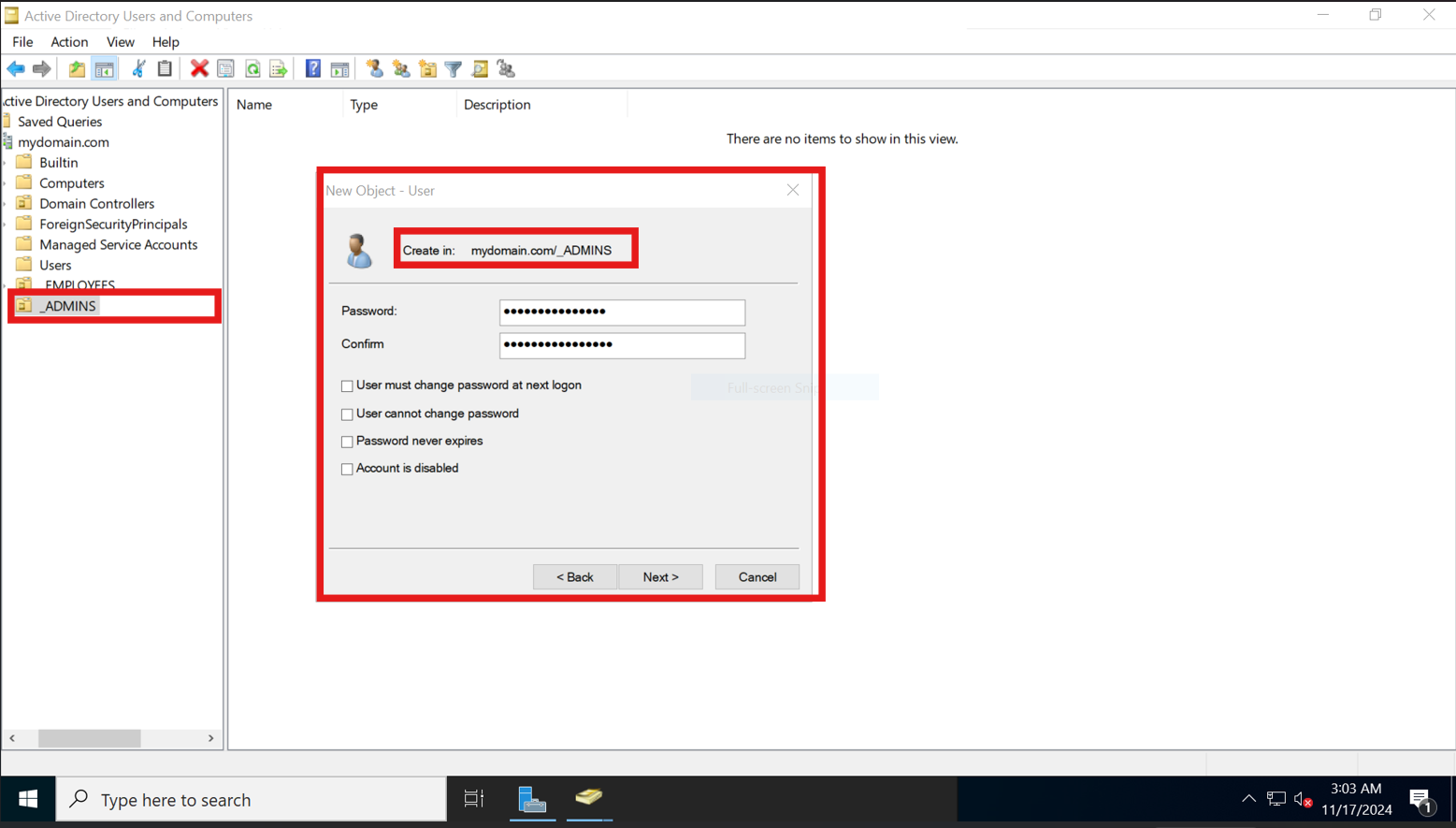

1. Inside _ADMINS, right-click and create a new user:
   • Name: Jane Doe
   • Username: JaneDoe
2. Add JaneDoe to the Domain Admins security group.

Step 5: Test Domain Functionality

Remote Desktop for Regular Users:

Log into Client-1 as mydomain.com\JaneDoe. Enable Remote Desktop access for Domain Users via System Properties > Remote Desktop.

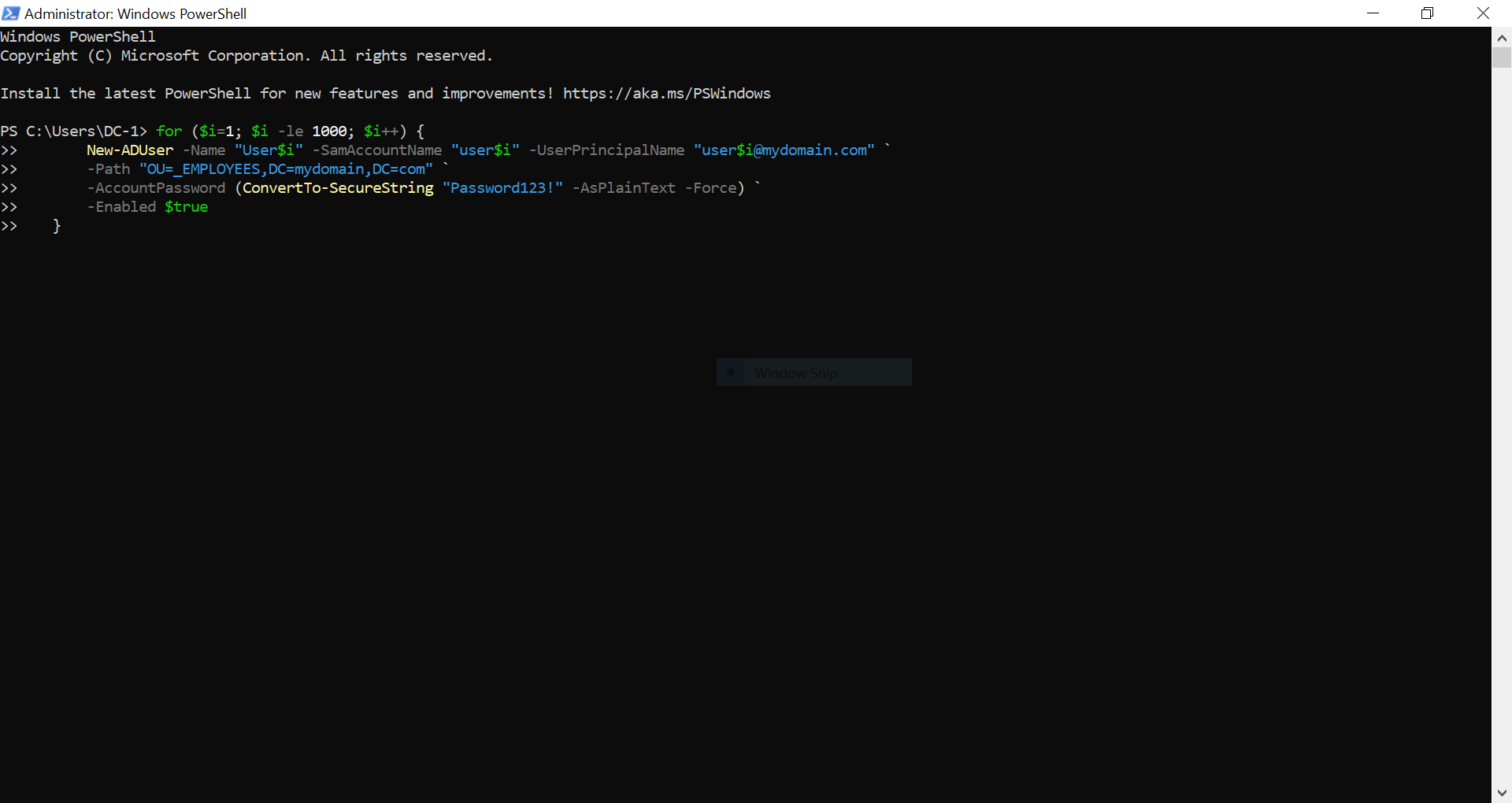

Create Bulk Users with PowerShell:

1. On DC-1, run the following script in PowerShell to create 1000 test users in the _EMPLOYEES OU:

   for ($i=1; $i -le 1000; $i++) {
       New-ADUser -Name "User$i" -SamAccountName "user$i" -UserPrincipalName "user$i@mydomain.com" `
       -Path "OU=_EMPLOYEES,DC=mydomain,DC=com" `
       -AccountPassword (ConvertTo-SecureString "Password123!" -AsPlainText -Force) `
       -Enabled $true
   }

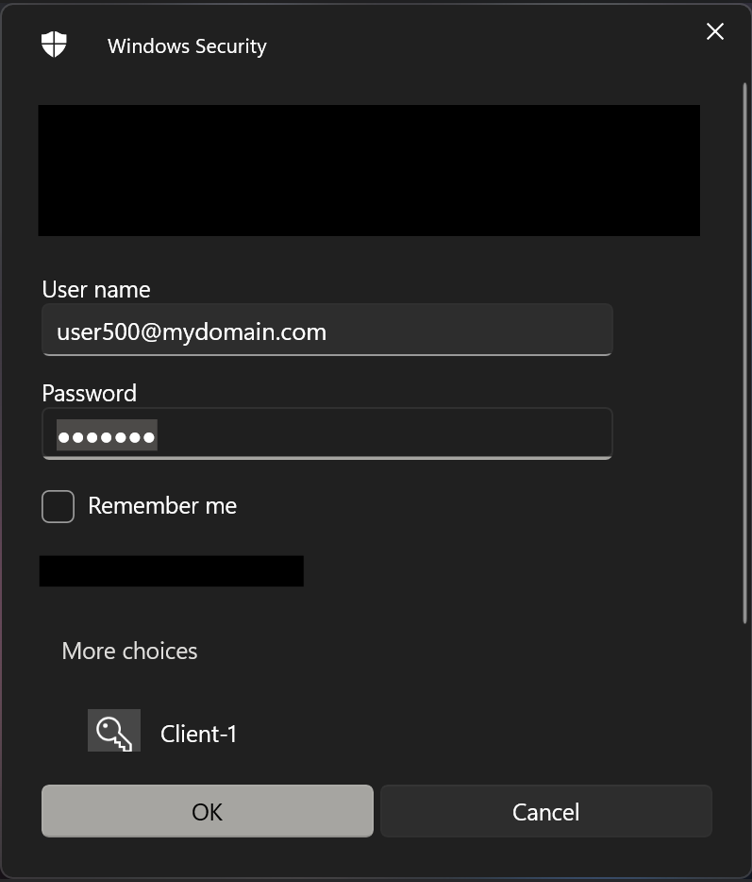

2. Test logging in with one of these users (e.g., user500) on Client-1 via Remote Desktop.

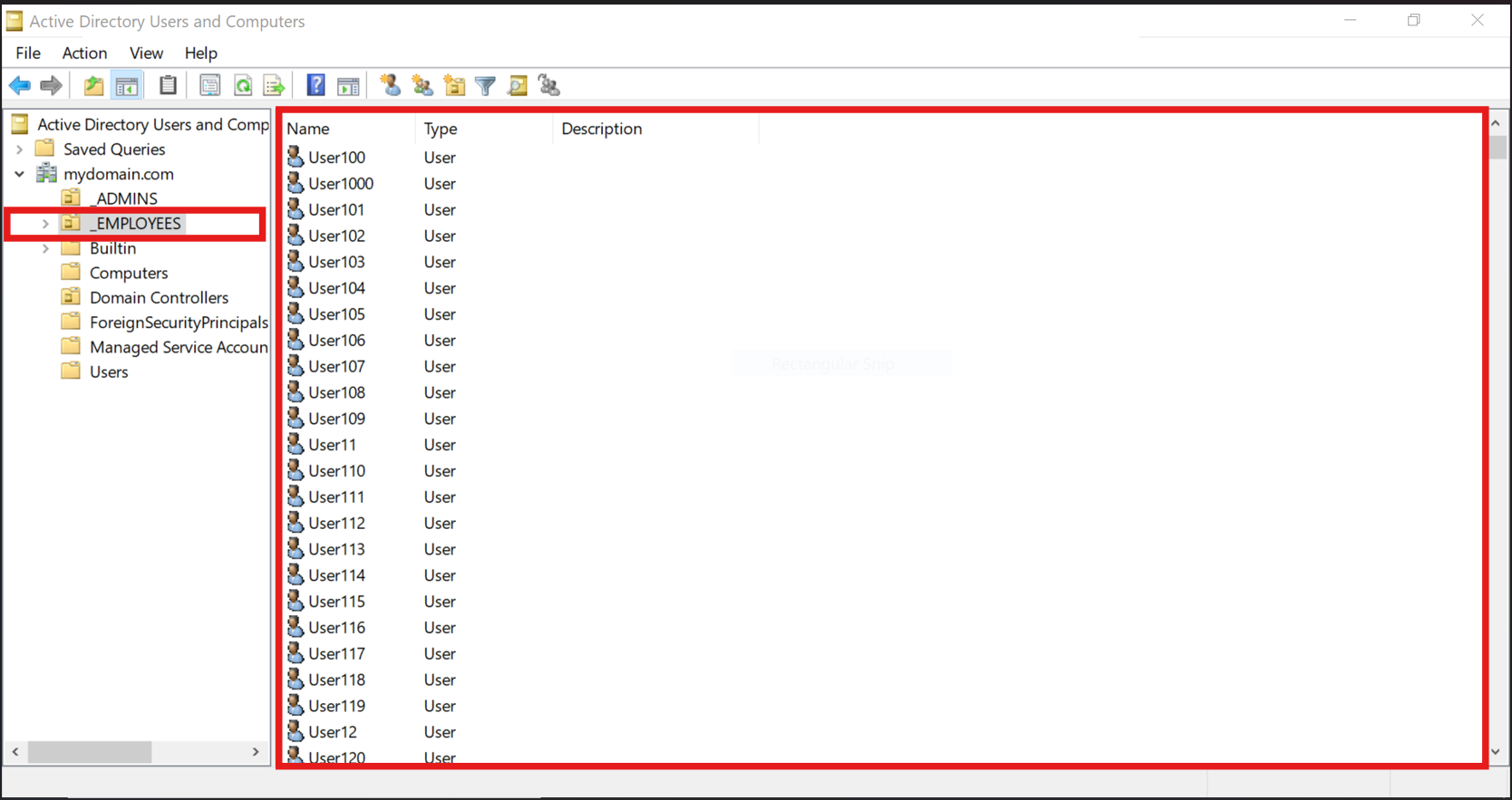

1000 Users Created Using PowerShell

Conclusion

Congratulations! 🎉 You’ve successfully deployed an on-premises-like Active Directory environment in Azure.

---
