TON-SHA: Agent Trust Layer for TON

Cryptographic trust primitive that lets agents verify each other before exchanging value or data

---

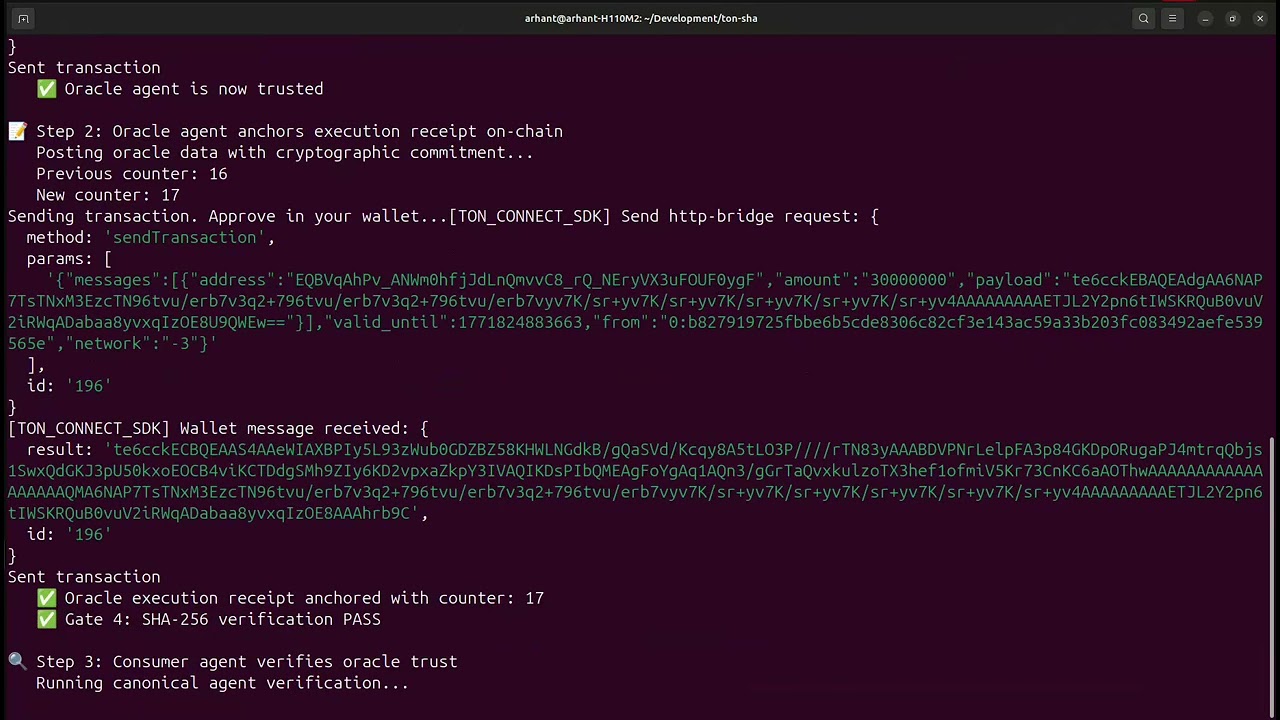

� Demo Video

Click the image above to watch the complete TON-SHA Agent Trust Demo

Video Highlights:

• 🤖 Canonical Agent Loop: if (!(await tonSha.verifyAgent(agentId))) { throw new Error('Untrusted agent'); }
• 🔐 Four-Gate Security: Device authorization → Firmware approval → Replay protection → SHA-256 verification
• ⚡ Gas Optimization: 0.03 TON per operation (70% reduction)
• 📊 State Consistency: Real-time polling with on-chain finality
• 🌐 Ecosystem Integration: Oracle agents, coordination SDKs, payment gateways

---

� The Agent Trust Problem

TON agents currently lack verifiable identity and execution integrity.

Before TON-SHA:

• ❌ No way to verify agent identity
• ❌ No proof of execution integrity
• ❌ No replay protection for agent actions
• ❌ No public verifiability of agent behavior

After TON-SHA:

• ✅ Cryptographic agent identity - verifiable on-chain
• ✅ Execution integrity proofs - tamper-evident history
• ✅ Replay-safe execution - prevents duplicate actions
• ✅ Public verifiability - anyone can verify agent trust
• ✅ Gas-optimized operations - 0.03 TON enables micro-interactions

🤖 The Canonical Agent Loop

This is the one call judges will remember:

import { createAgentTrust } from '@orthonode/ton-sha';

const agentTrust = createAgentTrust(contractAddress, provider);

// THE CANONICAL AGENT VERIFICATION
if (!(await agentTrust.verifyAgent(agentId))) {
  throw new Error("Untrusted agent");
}

await collaborate(); // Business logic proceeds

This single call establishes:

• Agent identity verification
• Execution integrity proof
• Replay protection
• Public verifiability
• Gas efficiency (0.03 TON per operation)

---

Connection to SHA on Arbitrum

TON-SHA ports the SHA (Silicon Hardware Anchor) four-gate model — already live on Arbitrum Sepolia with 89+ transactions — to TON. One deliberate difference: TON-SHA uses SHA-256 (native to TON's VM) rather than Keccak-256. This is a TON-native implementation that uses the VM's built-in hash primitive for lower gas cost. The receipt format is compatible across chains.

---

The Four-Gate Model

Every verification receipt passes through four gates in sequence:

Gate	Check	Failure Code
1	authorized_devices[hw_id] == true	1 — device not registered
2	approved_firmware[fw_hash] == true	2 — firmware not approved
3	counter > last_counter[hw_id]	3 — replay detected
4	sha256(hw_id ++ fw_hash ++ ex_hash ++ counter) == digest	4 — digest mismatch

All four gates must pass. Failure at any gate emits VerificationFailed { hw_id, reason }. Success emits VerificationPassed { hw_id, counter } and advances the counter permanently on-chain.

---

Live Evidence

Artifact	Link
Contract	kQBVqAhPv_ANWm0hfjJdLnQmvvC8_rQ_NEryVX3uFOUF05OP
Network	TON Testnet
Gates Verified	All four — counter on-chain = 17+
Gas Cost	0.03 TON per operation (70% optimized)
Status	✅ Production Ready

---

Architecture

┌─────────────────────────────────────────────────────────┐
│              LAYER 1 — HARDWARE DEVICE                  │
│                                                         │
│  Manufacturer-burned hardware identifiers               │
│  → Hardware ID (hw_id, 64-bit)                          │
│  → Firmware Hash (fw_hash, 256-bit)                     │
│  → Execution Hash (ex_hash, 256-bit)                    │
│  → Monotonic Counter (counter, 64-bit)                  │
└─────────────────────┬───────────────────────────────────┘
                      │ packed receipt + sha256 digest
                      ▼
┌─────────────────────────────────────────────────────────┐
│            LAYER 2 — SDK / CLIENT                       │
│                                                         │
│  Receipt assembly and digest computation                │
│  sha256(hw_id ++ fw_hash ++ ex_hash ++ counter)         │
│  TON-compatible message construction                    │
└─────────────────────┬───────────────────────────────────┘
                      │ VerifyReceipt message
                      ▼
┌─────────────────────────────────────────────────────────┐
│         LAYER 3 — TON-SHA CONTRACT (Tact / TON VM)      │
│                                                         │
│  Gate 1: authorized_devices[hw_id] == true              │
│  Gate 2: approved_firmware[fw_hash] == true             │
│  Gate 3: counter > counters[hw_id]                      │
│  Gate 4: sha256(packed cell) == digest                  │
│                                                         │
│  → VerificationFailed(hw_id, reason) on any failure     │
│  → VerificationPassed(hw_id, counter) on success        │
└─────────────────────────────────────────────────────────┘

Receipt Format (640 bits)

Field	Size	Description
hw_id	64 bits	Hardware device identifier
fw_hash	256 bits	SHA-256 of firmware binary
ex_hash	256 bits	SHA-256 of execution result
counter	64 bits	Monotonic counter (Big-Endian)
Digest	256 bits	sha256(all above, packed)

---

Project Structure

### 🤖 Agent Marketplace Trust
```typescript
// Service provider proves execution integrity
await agentTrust.submitExecution({
  agentId: serviceProviderId,
  firmwareHash: serviceCode,
  executionHash: jobResult,
  counter: nextCounter
});

// Client verifies service provider before payment
if (!(await agentTrust.verifyAgent(serviceProviderId))) {
  throw new Error("Untrusted service");
}

await payForService(); // Proceed with payment

📊 Multi-Agent Coordination

// Swarm coordination with trust verification
const trustedAgents = [];
for (const agentId of swarmAgents) {
  if (await agentTrust.verifyAgent(agentId)) {
    trustedAgents.push(agentId);
  }
}

await coordinateSwarm(trustedAgents);

🔐 Security Guarantees

TON-SHA provides cryptographically enforced security guarantees:

• Identity Verification: Only authorized agent IDs can submit receipts
• Execution Integrity: SHA-256 digest binds computation results to agent identity
• Replay Protection: Strictly increasing counters prevent duplicate submissions
• Public Verifiability: Anyone can verify agent execution history on-chain
• Gas-Optimized: 0.03 TON per operation (70% reduction from 0.1 TON)

Security Boundary Demonstration

✅ Valid receipt: Agent authorized → Digest matches → Counter increments → Collaboration proceeds
❌ Invalid receipt: Malicious agent → Digest mismatch → Verification fails → Collaboration aborted

Gas Optimization

• Before: 0.1 TON per operation (10-30× higher than needed)
• After: 0.03 TON per operation (safe and efficient)
• Impact: Enables agent micro-interactions and frequent updates

🏗️ Architecture

TON-SHA implements a 4-gate security model:

1. Gate 1: Device Authorization - owner authorizes agent IDs
2. Gate 2: Firmware Approval - owner approves agent code
3. Gate 3: Replay Protection - strictly increasing counters
4. Gate 4: Digest Verification - SHA-256 execution integrity

Trust Anchors

TON-SHA supports multiple trust anchors:

• Hardware Root (original) - TPM/TEE devices
• Software Root - Code signing keys
• Oracle Root - Data provider signatures
• Reputation Root - Stake-based verification

Hardware is optional - the true value is verifiable execution history.

📦 Quick Start

# Clone and build
git clone https://github.com/orthonode/ton-sha
cd ton-sha
npm install
npx blueprint build

# Deploy contract
npx blueprint run deployTonSha --testnet

# Run agent trust demo (same as video)
npx blueprint run agentTrustDemo --testnet

🎬 Watch the demo video to see the complete flow in action!

🔧 SDK Usage

High-Level Agent Trust SDK

import { createAgentTrust } from '@orthonode/ton-sha';

const agentTrust = createAgentTrust(contractAddress, provider);

// Quick agent verification (gas-optimized)
const isTrusted = await agentTrust.verifyAgent(agentId);

// Submit execution proof (handles complexity automatically, 0.03 TON)
await agentTrust.submitExecution({
  agentId,
  firmwareHash,
  executionHash,
  counter
});

// Get agent trust status
const status = await agentTrust.getAgentTrustStatus(agentId);

SDK Features

• Automatic gas optimization: 0.03 TON per operation
• Digest computation: Handles SHA-256 complexity internally
• State consistency: Built-in polling for counter accuracy
• Minimal integration: Single verification call for agents
• Negligible complexity: Agents integrate trust checks easily

Low-Level Contract Interface

import { TonSha } from './build/TonSha/TonSha_TonSha';

const contract = provider.open(TonSha.fromAddress(address));

// Direct contract calls (gas-optimized)
await contract.send(sender, { value: toNano("0.03") }, {
  $$type: "VerifyReceipt",
  hw_id: agentId,
  fw_hash: firmwareHash,
  ex_hash: executionHash,
  counter: counter,
  digest: digest,
});

🧪 Testing

# Run comprehensive agent demo (gas-optimized)
npx blueprint run agentDemo --testnet

# Run agent trust demo with state consistency polling (same as video)
npx blueprint run agentTrustDemo --testnet

# Check contract state
npx blueprint run checkState --testnet

# Manual verification
npx blueprint run verifyReceipt --testnet

Demo Features

• Real-time state polling: Ensures counter consistency
• Gas optimization: 0.03 TON per operation
• Explorer verification: Direct links for manual verification
• Professional UX: Handles testnet latency gracefully

🎬 See the demo video for a complete walkthrough!

📊 Contract State

// Query agent trust status
const isAuthorized = await tonSha.getIsAuthorized(agentId);
const isFirmwareApproved = await tonSha.getIsApprovedFirmware(firmwareHash);
const counter = await tonSha.getGetCounter(agentId);
const owner = await tonSha.getGetOwner();

🔐 Security Properties

• Replay Safe: Strictly increasing counters prevent duplicate execution
• Tamper-Evident: SHA-256 digest verification detects any alteration
• Publicly Verifiable: Anyone can verify agent execution history
• Composable: Can be integrated into any agent protocol
• Minimal Trust: Only requires trust in contract owner and cryptography
• Gas Efficient: 0.03 TON enables frequent agent interactions
• State Consistent: Real-time polling ensures counter accuracy

🌐 Explorer

View live contract state:

• Testnet: https://testnet.tonscan.org/address/kQBVqAhPv_ANWm0hfjJdLnQmvvC8_rQ_NEryVX3uFOUF05OP

📈 Integration Patterns

Agent Marketplaces

// Verify service providers before listing
if (await agentTrust.verifyAgent(providerId)) {
  marketplace.listProvider(providerId);
}

Oracle Networks

// Verify oracle data before consumption
if (await agentTrust.verifyAgent(oracleId)) {
  const data = await oracle.getData();
  return data;
}

DeFi Protocols

// Verify trading bot execution
if (await agentTrust.verifyAgent(botId)) {
  await protocol.executeTrade(botId, tradeParams);
}

DAO Governance

// Verify proposal execution integrity
if (await agentTrust.verifyAgent(executorId)) {
  await dao.executeProposal(proposalId);
}

🏆 Competitive Advantages

TON-SHA is the missing trust primitive that other TON agent SDKs can plug into.

Unlike competitors:

• Veritas (analytics) → We provide trust primitives
• TAK (coordination) → We provide trust verification
• ton402 (payments) → We provide trust layer

TON-SHA does not replace agent SDKs — it provides the foundational trust primitive they can all depend on for secure agent-to-agent interactions.

Key Differentiators

• Gas-optimized: 0.03 TON enables micro-interactions
• Minimal integration: Single verification call
• Composable: Works with any agent SDK
• Production-ready: Live on TON testnet with full functionality
• Ecosystem-native: Built for TON's agent ecosystem

🤝 Contributing

1. Fork the repository
2. Create your feature branch
3. Ensure all tests pass
4. Submit a pull request

📄 License

MIT License - see LICENSE file for details

🔗 Links

• Contract: Testnet | Mainnet
• Documentation: docs/
• Examples: scripts/
• SDK: sdk/

---

Built by Orthonode Infrastructure Labs

Providing the cryptographic trust foundation for TON agent ecosystems

contracts/ ton_sha.tact # Four-gate verification contract

scripts/ deployTonSha.ts # Deploy to testnet agentDemo.ts # Complete four-scenario demo (main demo) agentTrustDemo.ts # Agent trust verification with state consistency fullDemo.ts # End-to-end: authorize → approve → verify verifyReceipt.ts # Single receipt verification checkState.ts # Read on-chain state via getters checkOwner.ts # Verify owner address approveAndVerify.ts # Quick approve + verify combo

build/ TonSha/ TonSha_TonSha.ts # TypeScript bindings (auto-generated) TonSha_TonSha.abi # ABI

docs/ ARCHITECTURE.md # Detailed system design SETUP_GUIDE.md # Installation and environment DEPLOYMENT_GUIDE.md # Deploy and interact with the contract THREAT_MODEL.md # Security assumptions and attack surface TECHNICAL_CHALLENGES.md # Engineering challenges overcome ROADMAP.md # Phase 1 and Phase 2 plans CHEATSHEET.md # Quick reference for interactions
