re-ink

Automated Reinsurance Contracts & Parties creation using Agentic Document Extraction

re-ink is a full-stack web application that streamlines reinsurance contract management by automatically extracting contract details and party information from uploaded documents using AI-powered document extraction.

Recognition

Finalist in the LandingAI Financial AI Hackathon Championship 2025

Demo

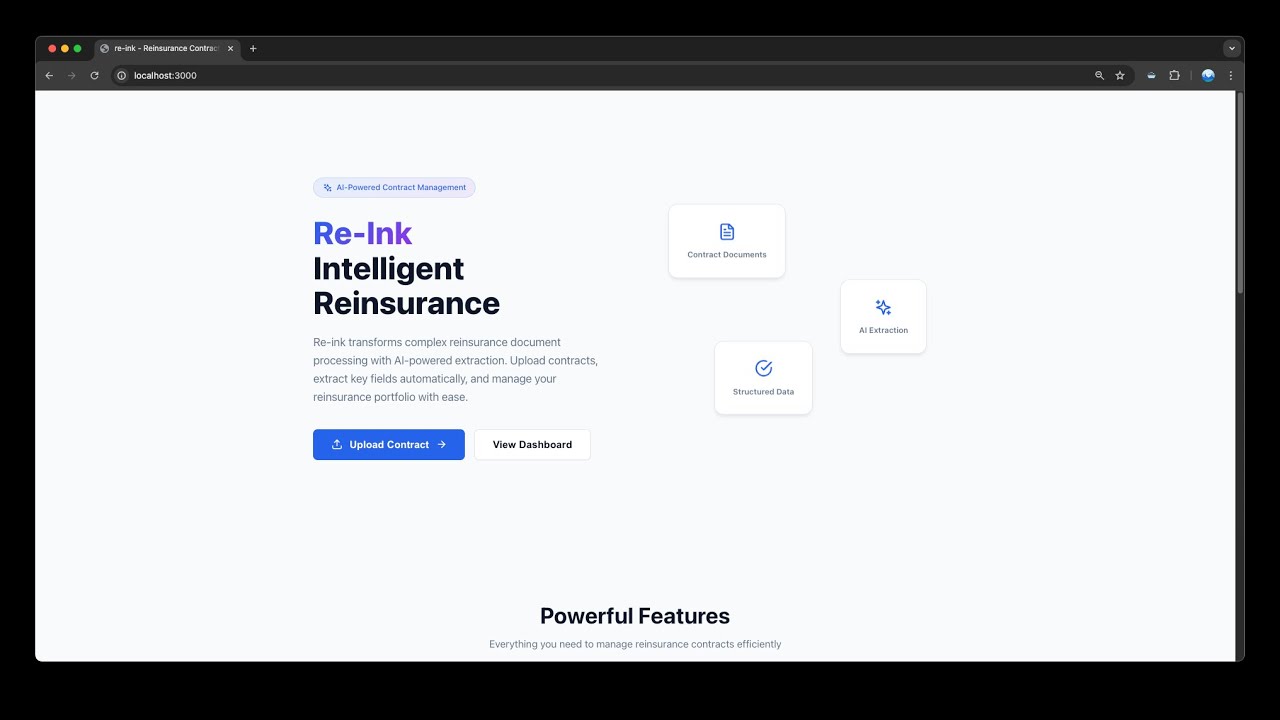

Watch the demo

Features

  • 📄 Document Upload: Upload PDF and DOCX reinsurance contract documents
  • 🤖 AI Extraction: Automatic extraction of contract terms and parties using LandingAI
  • ✅ Review Workflow: Review and edit AI-extracted data before creating records
  • 📊 Contract Management: Full CRUD operations for reinsurance contracts
  • 👥 Party Management: Manage parties (cedents, reinsurers, brokers)
  • 🔍 Search & Filter: Find contracts and parties quickly
  • 📈 Dashboard: Overview of contracts and parties with statistics
  • 🧪 Sample Extraction Mode: Seed mock data to test the workflow without LandingAI
  • 🤝 AI Agent Guidance: LangChain/LangGraph agents surface intake insights and automated reviews

Sample Documents

  • Browse curated sample files in sample_documents/ to exercise the ingestion workflow end to end.
  • Documents are sourced from public SEC EDGAR filings (https://www.sec.gov/edgar/search/) and trimmed to the excerpts needed for development and QA.
  • To upload a sample through the app, remove the .example suffix (or convert back to a standard PDF/DOCX) so the file matches the expected format.
  • When committing binary samples, rename them with .pdf.example or .docx.example suffixes so they bypass the .gitignore filters while preserving their original format.

Technology Stack

Backend

  • FastAPI: Modern Python web framework
  • SQLAlchemy: ORM for database operations
  • PostgreSQL: Relational database
  • LandingAI: Agentic document extraction API
  • Alembic: Database migrations

Frontend

  • React 18: UI framework
  • TypeScript: Type-safe JavaScript
  • Vite: Fast build tool
  • React Router: Client-side routing
  • React Query: Server state management
  • Axios: HTTP client

Architecture

┌────────────────────────────────────────────────────────────────────────────┐
│                              USER / BROWSER                                │
└───────────────────────────────┬────────────────────────────────────────────┘
                                │
                    ┌───────────▼───────────┐
                    │     React Frontend    │
                    │  - Upload & Review UI │
                    │  - AI Insight Panels  │
                    └───────────┬───────────┘
                                │  HTTP/REST
                    ┌───────────▼───────────┐
                    │     FastAPI Backend   │
                    │                       │
                    │ /api/documents        │
                    │ /api/review           │
                    │ /api/agents           │
                    └───┬──────────────┬────┘
                        │              │
                ┌───────▼───┐      ┌───▼───────────────┐
                │ Document  │      │ Agent Service     │
                │ Service   │      │ (LangChain/Graph) │
                │ (LandingAI│      │ - Guided Intake   │
                │  workflow)│      │ - Contract Review │
                └────┬──────┘      └────┬──────────────┘
                     │                  │
      ┌──────────────▼──────────┐       │
      │ Extraction Job Store    │       │
      │ (status + parsed data)  │       │
      └──────────────┬──────────┘       │
                     │                  │
        ┌────────────▼────────┐         │
        │ LandingAI ADE API   │         │
        │ Parse & Extract     │         │
        └────────────┬────────┘         │
                     │                  │
        ┌────────────▼────────┐         │            ┌─────────────────┐
        │ PostgreSQL          │◄────────┼────────────┤ LangChain LLM   │
        │ Contracts & Parties │         │  prompts   │  (OpenAI, etc.) │
        └─────────────────────┘         │            └─────────────────┘
                                        │
                                        │
                            (insights returned to frontend)

Quick Start

Rapid Start via Makefile

The repo includes a Makefile so you can bootstrap both services quickly:

# Install backend + frontend dependencies
make setup

# Copy and edit environment files (run once)
cp backend/.env.example backend/.env
cp frontend/.env.example frontend/.env

# Launch both dev servers (Ctrl+C stops both)
make dev

Use make backend-dev or make frontend-dev if you want to run either side individually, and make backend-install / make frontend-install to refresh dependencies.

Prerequisites

  • Python 3.9+
  • Node.js 18+
  • PostgreSQL 12+
  • LandingAI API key

Backend Setup

cd backend

# Create virtual environment
python -m venv venv
source venv/bin/activate  # Windows: venv\Scripts\activate

# Install dependencies
pip install -r requirements.txt

# Configure environment
cp .env.example .env
# Edit .env with your settings

# Set up database
createdb reink_db
alembic upgrade head

# Run server
uvicorn app.main:app --reload
# or use: make backend-dev

Backend will be available at http://localhost:8000 API docs at http://localhost:8000/docs

Frontend Setup

cd frontend

# Install dependencies
npm install

# Configure environment
cp .env.example .env
# Edit .env with backend URL

# Run development server
npm run dev
# or use: make frontend-dev

Frontend will be available at http://localhost:3000

Project Structure

re-ink/
├── backend/              # FastAPI backend
│   ├── app/
│   │   ├── api/         # API endpoints
│   │   ├── core/        # Configuration
│   │   ├── db/          # Database setup
│   │   ├── models/      # Database models
│   │   ├── schemas/     # Pydantic schemas
│   │   ├── services/    # Business logic
│   │   └── main.py      # Application entry
│   ├── alembic/         # Database migrations
│   └── requirements.txt
├── frontend/            # React frontend
│   ├── src/
│   │   ├── components/  # React components
│   │   ├── pages/       # Page components
│   │   ├── services/    # API client
│   │   ├── types/       # TypeScript types
│   │   └── styles/      # CSS styles
│   └── package.json
└── README.md

Workflow

  1. Upload: User uploads a reinsurance contract document (PDF or DOCX)
  2. Extract: System sends document to LandingAI for AI-powered extraction
  3. Process: AI extracts contract details, dates, financial terms, and party information
  4. Review: User reviews and edits the extracted data in a user-friendly form
  5. Approve: User approves the data, creating Contract and Party records
  6. Manage: Contracts and parties can be viewed, searched, and managed

API Endpoints

Documents

  • POST /api/documents/upload - Upload a document and start extraction in the background
  • GET /api/documents/status/{job_id} - Check extraction status (supports processing, completed, failed)
  • GET /api/documents/results/{job_id} - Retrieve parsed extraction results when a job is complete

Contracts

  • GET /api/contracts/ - List contracts (supports status, contract_type, skip, limit filters)
  • POST /api/contracts/ - Create a contract
  • GET /api/contracts/{id} - Get contract details with associated parties
  • PUT /api/contracts/{id} - Update contract fields
  • DELETE /api/contracts/{id} - Soft delete a contract
  • POST /api/contracts/{id}/parties/{party_id} - Link a party to a contract with a role
  • DELETE /api/contracts/{id}/parties/{party_id} - Remove a party association from a contract

Parties

  • GET /api/parties/ - List parties (supports party_type, is_active, skip, limit)
  • POST /api/parties/ - Create a party
  • GET /api/parties/{id} - Get party details
  • PUT /api/parties/{id} - Update party fields
  • DELETE /api/parties/{id} - Soft delete a party
  • GET /api/parties/search/by-name - Search parties by partial name match

Review

  • POST /api/review/approve - Approve extracted data
  • POST /api/review/reject/{job_id} - Reject extraction

Agents

  • POST /api/agents/intake - Run the guided intake LangChain agent for an extraction job
  • POST /api/agents/review - Generate an automated review for a contract

System

  • GET /api/system/config - Return agent configuration flags (e.g., offline mode) for the frontend

Development

See detailed development guides:

Configuration

Backend (.env)

APP_NAME=re-ink
APP_VERSION=1.0.0
DEBUG=false
SECRET_KEY=your_secret_key
DATABASE_URL=postgresql://user:password@localhost:5432/reink_db
LANDINGAI_API_KEY=your_landingai_api_key
LANDINGAI_PARSE_URL=https://api.va.landing.ai/v1/ade/parse
LANDINGAI_EXTRACT_URL=https://api.va.landing.ai/v1/ade/extract
LANDINGAI_PARSE_MODEL=dpt-2-latest
LANDINGAI_EXTRACT_MODEL=extract-latest
MAX_UPLOAD_SIZE=52428800
UPLOAD_DIR=./uploads
ALLOWED_EXTENSIONS=.pdf,.docx
ALLOWED_ORIGINS=["http://localhost:3000","http://localhost:5173"]
ACCESS_TOKEN_EXPIRE_MINUTES=30
LOG_LEVEL=INFO
OPENAI_API_KEY=your_openai_key
AGENT_MODEL=gpt-4o-mini
AGENT_TEMPERATURE=0.1
AGENT_OFFLINE_MODE=false
  • OPENAI_API_KEY is only needed when LangChain/LangGraph agents should call OpenAI; set AGENT_OFFLINE_MODE=true to bypass those calls locally.
  • ALLOWED_ORIGINS supports JSON array notation (shown above) or a comma-separated list.
  • Adjust MAX_UPLOAD_SIZE, ALLOWED_EXTENSIONS, and UPLOAD_DIR if you need to support additional file formats.

Frontend (.env)

VITE_API_BASE_URL=http://localhost:8000/api

License

See LICENSE file for details.

Contributing

This project is designed for insurance and reinsurance companies to streamline contract management workflows. Contributions are welcome!

Support

For issues, questions, or feature requests, please open an issue on the project repository.
