Surfel-LIO

Fast LiDAR-Inertial Odometry with Pre-computed Surfels and Hierarchical Z-order Voxel Hashing

MIT License

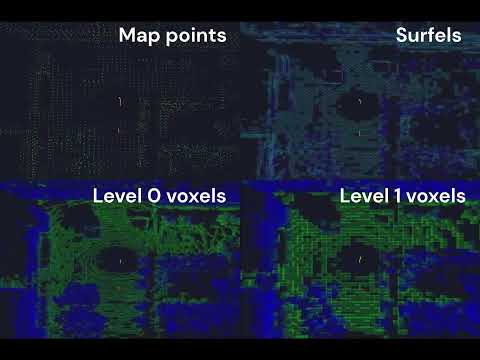

Demo

Features

• Iterated Extended Kalman Filter (IEKF): Direct LiDAR-IMU fusion with nested iteration for re-linearization and convergence
• Adaptive Robust Estimation: Probabilistic Kernel Optimization (PKO) for automatic Huber loss scale tuning
• 2-Level Hierarchical Voxel Map (L1→L0): Coarse-to-fine spatial indexing with Z-order Morton code hashing for cache-friendly O(1) lookup
• Pre-computed Surfel Planes: L1 voxels store fitted plane surfels (normal, centroid, planarity) via incremental covariance, enabling fast point-to-plane correspondence
• Motion Compensation: IMU-based undistortion for moving LiDAR scans

Probabilistic Kernel Optimization (PKO)

This project implements adaptive robust estimation using Probabilistic Kernel Optimization for automatic Huber loss scale tuning. If you use this method in your research, please cite:

@article{choi2025pko,
  title={Probabilistic Kernel Optimization for Robust State Estimation},
  author={Choi, Seungwon and Kim, Tae-Wan},
  journal={IEEE Robotics and Automation Letters},
  volume={10},
  number={3},
  pages={2998--3005},
  year={2025},
  publisher={IEEE}
}

ROS2 Wrapper: https://github.com/93won/lio_ros_wrapper

Installation (Ubuntu 20.04)

cd lidar_inertial_odometry
./build.sh

This will:

1. Build Pangolin from thirdparty/pangolin
2. Build the main project with CMake

Quick Start

NTU VIRAL Dataset

Download Pre-processed Dataset:

• Google Drive: NTU VIRAL Parsed Dataset
• Source: NTU VIRAL Dataset
• Sensors: Ouster OS1-16 LiDAR + VectorNav VN100 IMU

Running Single Sequence:

cd build
./lio_player ../config/ntu_viral.yaml /path/to/NTU_VIRAL/eee_01

M3DGR Dataset

Download Pre-processed Dataset:

• Google Drive: M3DGR Parsed Dataset
• Source: M3DGR Dataset
• Sensors: Livox Avia / Mid-360 LiDAR + Built-in IMU

Running Single Sequence:

cd build

# Livox Avia
./lio_player ../config/avia.yaml /path/to/M3DGR/Dynamic03/avia

# Livox Mid-360
./lio_player ../config/mid360.yaml /path/to/M3DGR/Dynamic03/mid360

Dataset Structure:

M3DGR/
├── Dynamic03/
│   ├── avia/
│   │   ├── imu_data.csv
│   │   ├── lidar_timestamps.txt
│   │   └── lidar/
│   │       ├── 0000000000.pcd
│   │       ├── 0000000001.pcd
│   │       └── ...
│   └── mid360/
│       └── (same structure)
├── Dynamic04/
├── Occlusion03/
├── Occlusion04/
├── Outdoor01/
└── Outdoor04/

Benchmark

Evaluation on M3DGR Dataset comparing with FAST-LIO2 and FASTER-LIO.

Summary

Sensor	Metric	Ours	FAST-LIO2	FASTER-LIO
Livox AVIA	APE RMSE (m)	0.365	0.397	0.362
Livox AVIA	FPS	531	125	184
Livox Mid360	APE RMSE (m)	0.342	0.342	0.352
Livox Mid360	FPS	690	282	353

Detailed Results (Livox AVIA)

Sequence	Ours (m)	FAST-LIO2 (m)	FASTER-LIO (m)	Ours (FPS)	FL2 (FPS)	FL (FPS)
Dark01	0.118	0.258	0.223	670	140	203
Dark02	0.692	0.729	0.645	488	120	195
Dynamic03	0.266	0.165	0.151	606	145	225
Dynamic04	0.392	0.279	0.261	603	138	201
Occlusion03	0.271	0.257	0.283	561	124	179
Occlusion04	0.295	0.479	0.337	501	130	203
Varying-illu03	0.961	0.897	1.032	436	120	165
Varying-illu04	0.125	0.102	0.119	435	93	144
Varying-illu05	0.167	0.402	0.207	576	133	172
Average	0.365	0.397	0.362	531	125	184

Detailed Results (Livox Mid360)

Sequence	Ours (m)	FAST-LIO2 (m)	FASTER-LIO (m)	Ours (FPS)	FL2 (FPS)	FL (FPS)
Dark01	0.185	0.177	0.173	1044	589	925
Dark02	0.310	0.239	0.212	720	337	401
Dynamic03	0.206	0.178	0.178	670	263	461
Dynamic04	0.246	0.216	0.214	657	265	363
Occlusion03	0.315	0.423	0.463	687	301	373
Occlusion04	0.345	0.216	0.284	596	251	385
Varying-illu03	0.957	1.221	1.189	618	242	259
Varying-illu04	0.206	0.161	0.163	664	205	170
Varying-illu05	0.307	0.245	0.290	704	297	498
Average	0.342	0.342	0.352	690	282	353

Project Structure

lidar_inertial_odometry/
├── src/
│   ├── core/             # Core algorithm implementation
│   │   ├── Estimator.h/cpp                  # IEKF-based LIO estimator
│   │   ├── State.h/cpp                      # 18-dim state representation
│   │   ├── VoxelMap.h/cpp                   # Hash-based voxel map for fast KNN
│   │   └── ProbabilisticKernelOptimizer.h/cpp # PKO for adaptive robust estimation
│   │
│   ├── util/             # Utility functions
│   │   ├── LieUtils.h/cpp       # SO3/SE3 Lie group operations
│   │   ├── PointCloudUtils.h/cpp # Point cloud processing
│   │   └── ConfigUtils.h/cpp    # YAML configuration loader
│   │
│   └── viewer/           # Visualization
│       └── LIOViewer.h/cpp      # Pangolin-based 3D viewer
│
├── app/                  # Application executables
│   └── lio_player.cpp    # Dataset player with live visualization
│
├── config/               # Configuration files
│   ├── avia.yaml         # Parameters for Livox Avia LiDAR
│   └── mid360.yaml       # Parameters for Livox Mid-360 LiDAR
│
├── thirdparty/           # Third-party libraries
│   ├── pangolin/         # 3D visualization
│   └── spdlog/           # Logging (header-only)
│
├── CMakeLists.txt        # CMake build configuration
└── README.md             # This file
